Commercial 10 - 100 Amp Rotary Isolator Switch / Change Over Switch IP65

    Buy cheap Commercial 10 - 100 Amp Rotary Isolator Switch / Change Over Switch IP65 from wholesalers

    Buy cheap Commercial 10 - 100 Amp Rotary Isolator Switch / Change Over Switch IP65 from wholesalers
    • Buy cheap Commercial 10 - 100 Amp Rotary Isolator Switch / Change Over Switch IP65 from wholesalers
    • Buy cheap Commercial 10 - 100 Amp Rotary Isolator Switch / Change Over Switch IP65 from wholesalers
    • Buy cheap Commercial 10 - 100 Amp Rotary Isolator Switch / Change Over Switch IP65 from wholesalers
    • Buy cheap Commercial 10 - 100 Amp Rotary Isolator Switch / Change Over Switch IP65 from wholesalers

    Commercial 10 - 100 Amp Rotary Isolator Switch / Change Over Switch IP65

    Ask Lasest Price
    Brand Name : KRIPAL

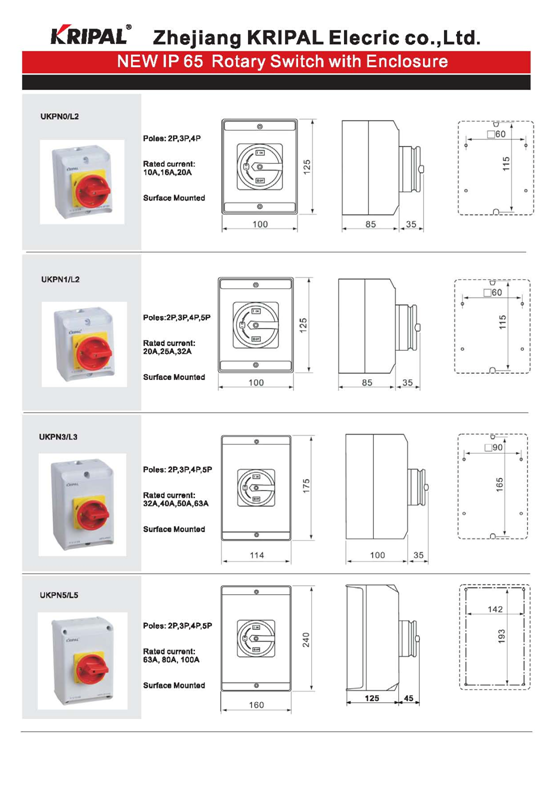

    Model Number : UKPN0,UKPN1,UKPN3,UKPN5
    Certification : CE, Semko
    Price : negotiable
    Payment Terms : T/T, L/C
    Supply Ability : 50000 pcs per month
    Delivery Time : 20 days and depends on ordering quantity
    • Product Details
    • Company Profile

    Commercial 10 - 100 Amp Rotary Isolator Switch / Change Over Switch IP65

    Commercial 10~100 Amp Rotary Isolator Switch Electrical Isolation Switch IP65 CE, Semko


    KRIPAL HAS THE DESIGN PATENT FOR THIS SERIES SWITCHES.


    Description:


    1. These rotary isolator switches are used to switch power to commercial / light industrial applications.


    2. The red switch can be used as an emergency stop, and can be locked in the “OFF” position using

    the yellow surrounding ring and padlock.


    3. Easy cable access via M20/25 knockouts


    4. The screws are captive retained and would not drop off when the lid is turned over.


    5. Earth terminal is included


    6. Enclosure: brand-new PC, White


    7. Standard: manufactured and tested as IEC 60947-3


    Specifications:


    No.Tech Parametersrequirement
    1.Rated voltagebelow 440V
    2.rated current10A,16A,20A,25A,32A,40A,50A,63A,80A,100A
    3.frequencyAC50HZ
    4.No. of poles of UKP02P,3P,4P
    5No. of poles of UKP1,UKP3,UKP52P,3P,4P,5P
    6.No. of layersmake as required with circuit diagram
    7.panel size64*64mm
    8.color of handleBlack/red
    9.Working temperature-25°C~+40°C
    10.Working height≤2,000m
    11.Relative humidity

    ≤50% with highest temperature +40°C,but allow higher humidity with low temperature less than 40°C

    (eg.: humidity 90%----teperature20°C)

    12.Installation conditionspollution class III
    13.Mechanical life0.1*106times
    14.Electrical life0.03*106times
    15.Operative frequency120times/hour
    16.Transform angle

    90°



    Applications:


    Disconnect Switches offer ideal features for their use as: ON-OFF Switches, Emergency-Off Switches, Maintenance Switches, Safety Switches, Distribution Switches, and Motor switches


    FAQ:


    1. Samples: provided freely


    2. Warranty: 3 years; every item is tested before delivery, professional testing lab in factory


    3. ODM, OEM: acceptable; mould tooling is finished in our own mould tooling center


    4. Replacement Terms: The faulty items will be replaced freely, once we confirm that they result from poor

    quality or incorrect production. Regarding the delivery of replacements, it is negotiable between two parties.


    Working condition:

    1. Recommended ambient temperature -5oC~42oC


    2. Installation altitude: ≤ 2000m


    3. Relative atmosphere humidity do not exceed 50% when the highest temperature is +40°C. At lower temperature, higher humidity can be allowed.

    For example, humidity can reach 90% when temperature is 20°C. Special measures should be taken when the congealed dew appears on the surface caused by the change of temperature.


    Declaration:


    KRIPAL is a factory with more than 20 years manufacturing experience and the mold tooling are built in our own mold tooling center. Furthermore our items are different from others to a certain degree. Hereby, we claim that KRIPAL is the only one who makes this item and the same products you got from other companies are also supplied by KRIPAL.


    Why not get goods from us directly?
