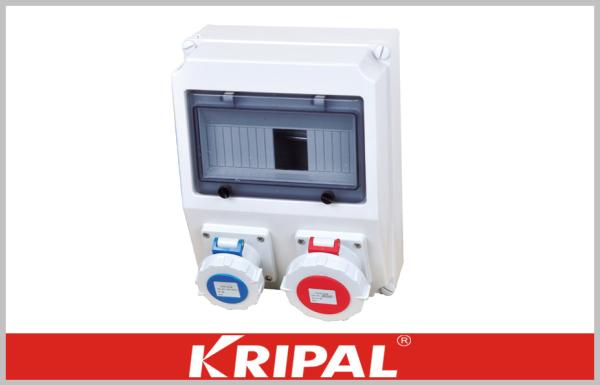

PC Industrial Outlet Box 16A 32A Power Distribution Box IP67 Waterproof

Descriptions:

UK series PC power maintenance box is in line with relative IEC standards, which is for electrical network (50-60Hz, Voltage not higher than 660V). At the same time, they are with circuit protection like overload, short circuit and current leakage and provide the power outlets for electrical
equipments.

These boxes are wildly used in oil, chemical industry, metallurgy, power plants, coal mines, machinery, textile, ports, docks and other industries, specifically for maintenance in the tunnel range of rail transit.
Enclosures are suppressed by special synthetic material(PC) in one tIme which has the sum of features: high hardness, stable size, good insulation, good thermal stability and chemical stability (resistant mineral acids, carbohydrates, saturated fat, petrol, fats and oils erosion stability), flame retardant (the material is non-flammable and it can be self-extinguishing after combustion fire ).

Since it does not contain halogen, combustion, there would be no vapors which would cause acid rain corrosion when burned. Otherwise, boxes are 0filled with foam seals and up to IP67 according to EN (European Committee for Standardization) standard 60529/10.91, impact rating IK09, long service life.

They are designed with transparent windows which is convenient and safe for operation. No need to open the doors.

Specifications:

Full range:

Rated insulation voltage: AC 400V (660V)
Rated operation voltage: AC 230/400V,

Rated frequency: 50-60 Hz
Protection class: IP44, IP65, IP66, IP67
Single-loop Output Current: 10A, 16A, 20A, 32A, 40A, 50A, 63A, 125A etc.
Single-loop output voltage: 20-25V, 40-50V, 100-130V, 200-250V, 380-480V, 500-660V
Poles of output socket: 1P + N + PE, 3P + E, 3P + N + E
Applicable environment: indoor & outdoor

Standard: European standards as IEC/EN;Australian standards as AS/NZS

Custom build options:

The industrial power distribution box can be customized to suit specific customer requirements.

The standard products listed can be fitted with different combinations of industrial switch socket outlets or specialized outlets, individual RCCB and over current protection or metering if required.

Contact us for further information

FAQ:

A. How's the delivery time?
Depend on your quantity, usually within 20days after receiving deposit

B. Would you accept OEM/ODM service?

Glad to say that there is planning department, technical department and mould tooling center in

our factory.

For the OEM & ODM, it is ok for us if your brand, market shares are great.

C. Would you offer free sample?

Samples are freely provided and shipping costs is paid on your end usually.

D. What's your guaranty time?

At least 2 years and depend the product

E. What's your payment term?

T/T, L/C; other terms is negotiable after further check
