KLR332 Protective Relay Green LED Red LED Contact Material Silver Alloy

    Buy cheap KLR332 Protective Relay Green LED Red LED Contact Material Silver Alloy from wholesalers

    Buy cheap KLR332 Protective Relay Green LED Red LED Contact Material Silver Alloy from wholesalers
    • Buy cheap KLR332 Protective Relay Green LED Red LED Contact Material Silver Alloy from wholesalers

    KLR332 Protective Relay Green LED Red LED Contact Material Silver Alloy

    Ask Lasest Price
    Brand Name : KRIPAL
    Model Number : KLR332
    Certification : CE
    Price : negotiable
    Payment Terms : T/T, L/C
    Supply Ability : 10000 pcs per month
    Delivery Time : 20 days and depends on ordering quantity
    • Product Details
    • Company Profile

    KLR332 Protective Relay Green LED Red LED Contact Material Silver Alloy

    KLR332 Earth Leakage Relay Protection Relay green LED red LED contact material silver alloy


    Features

    ① Numerical earth leakage relay

    ② Programmable current sensitivity and time delay

    ③ Built-in digital harmonic filter

    ④ Detection of no connection to current transformer

    ⑤ Real-time leakage current display

    ⑥ Relay tripped indicator

    ⑦ Leakage current recording when tripped

    ⑧ IEC60755 standard


    Technical Data


    Settings
    Sensitivity adjustmentRange 1 is stepping from 0.03A-0.05A-0.10A-0.15A
    Range 2 is from 0.20A to 0.75A in step of 0.05A
    Range 3 is from 0.80A to 3.00A in step of 0.05A
    Delay time adjustmentFrom 0.05 to 3.00 sec in step of 0.05 sec
    From 3.00 to 10.0 sec in step of 0.50 sec

    Contacts
    Contact arrangementChange-over
    Contact rating6A,250V AC (cos∮=1)for tripping contact
    Contact materialSilver alloy
    Operating time15 ms max.
    Expected electrical life100000 operations at rated current
    Expected mechanical life5×106 operations

    Indicators
    Auxiliary supplyGreen LED
    Time delayRed LED
    Trip7-segment LED and red LED
    Real-time leakage current

    7-segment LED


    Zero-phase current transformer
    To operate with KCT series of current transformer

    Mechanical
    Mounting methodPanel mounted,DIN rail mounted , Screws mounted
    Front panelStandard DIN 96mm ×96mm
    Weight0.8kg (excluding KCT)

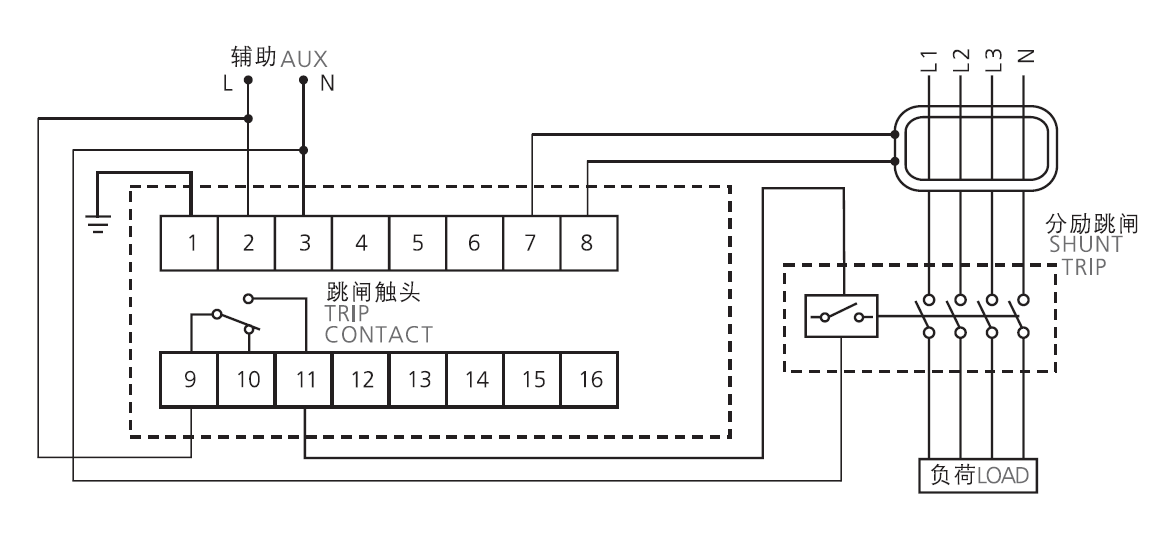

    Typical Application Diagram



    Case dimensions



    KLR332 Earth Leakage Relay Protection Relay green LED red LED contact material silver alloy


    Ordering Information


    KLR332-240With 240VAC, 50/60Hz power supply
    KLR332-110With 110VAC, 50/60Hz power supply
