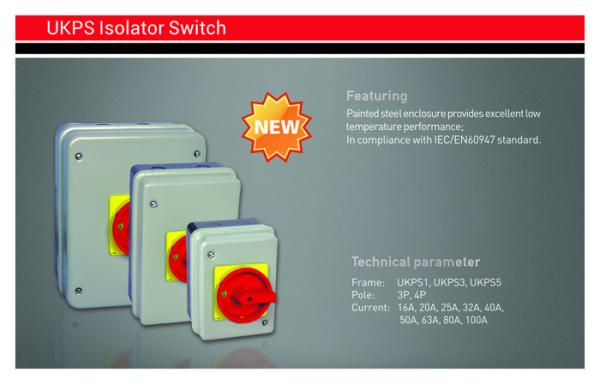

IP65 100A 4 Pole Painted steel Enclosed Multi Position Rotary Switch Disconnectors

Kripal is the ONLY ONE MANUFACTURER of Painted steel Enclosed isolators in China mainland.

Description:

Specifications:

Applications:

The rotary isolator switch disconeectors must be selected according to the following performance specifications:

1) According to motor switching capacity, when the switch is fitted in such a way that the operator may use it for operational ON and OFF switching.

2) The rating data always applies to 4 poles. When the motor rating is divided between 6 poles, such as for star-delta switching, a 6 pole switch can be used to control 1.73 times the rated power.

3) If the rotary isolator switch has a load-shedding Contact (LA), you can select the appropriate switch according to the uninterrupted current. The load-shedding contact is an auxiliary contact, which s closed in the ON position and opens early when witching off, so that a contactor located in the circuit takes over the switching duty and the maintenance/safety switch operates at zero load. When switching on, the load-shedding contact closes later than or at the same time as the main contacts.

Features:

UKPS1:111*147*85*37

UKPS3:144*220*95*37

UKPS5:220*270*108*43

Optional:

a. Netural contacts

b. 1NO+1NC module

c. Color of handle and surroundings
