Power System Leakage Protection Zero Current Transformer 55mm 0.3A

Description:

A zero-phase current transformer for use as a leakage current detecting element in a leakage current interrupter in which two magnetic materials of different permeability are provided so as to eliminate a range where the leakage current interrupter is inoperable without lowering its ability to distinguish noise components. The different magnetic materials may be provided as a single core constructed by mixing the materials of different permeability.

Otherwise, the materials can be provided as annually-shaped magnetic pieces stacked one on top of the other. Still further, the materials of different magnetic permeability may be provided as bands of materials interlude to form alternating layers or one of the materials may be provided as at least a portion of a protective case.

Applications:

Electric fire monitoring

Leakage protection system

Electromagnetic relaying protection

Microcomputer protection

Specifications:

It can be widely used in the relay protection area

Encapsulated with epoxy resin to ensure strong insulation ability

Various mechanical dimensions, highly customer-tailored

Linear output current, high precision

Small volume, light weight, easy for installation

Compact and delicate appearance

Suitable for single-phase electricity meter as well as anti-tampering electricity meter

Technical data:

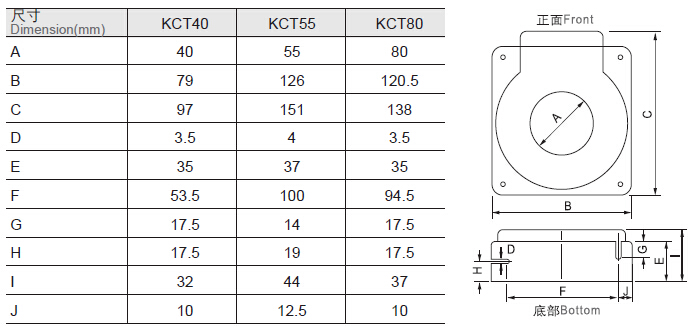

Dimension:

Warranty:

2 years, any faulty items caused by KRIPAL willbe replaced freely.

OEM/ODM:

Glad to say that there is planning department, technical department and mould tooling center in our factory. For the OEM & ODM, it is ok for us if your brand, market shares are great.

Samples: provided freely
