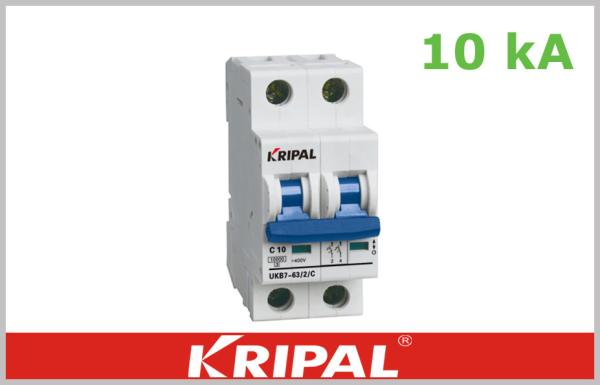

10KA MCB Mini Circuit Breaker Moller L7 Series , IEC60898 Standard

UKB7 (Moeller L7) series Circuit Breaker is the new product adopted the newest modern high technology. It’s excellent performance is depending on the quick trip and strong ability of exterminating the electrical and it enhances the safeness in the case of limited short-circuit. The brilliant characteristic of its short-circuit current is superior to the related requirement of IEC60898.The electrical endurance of the products is well improved, which reduce the destruction to the distribution system of equipments. The product is mainly used in the circuit which is AC50/60Hz, voltage≤400V and rated current≤60A. It is the best choice of the building distribution system.

Features:

1. Protection against both overload and short circuit

2. High short-circuit capacity

3. Contact position indication

4. Applicable to terminal and pin/fork type busbar connection

5. Easy mounting onto 35mm DIN rail

Technical Data:

Tips:

1. MCB is for non-professional operation by those untrained, and no maintenance is required

2. Satisfying conditions and applications as mentioned above,MCB with “ON-OFF” indicating device is considered suitable for isolation function.

3. Particular devices such as surge protective devices,surge arrester etc are recommended to install at upstream line to MCB as precaution against potential surge voltage and current occurring at its power input side.

4. Appropriate tripping curve being chosen and properly installed, MCB trips and switches off its protected circuit in case of fault, and thus provides protection against electric shock.

Tripping Current:
