High End AC motor 3 Phase Capacitor Switching Contactor 32A 40A

Description:

UKC1 series swithing capacitor contactor (hereafter called " the contactor " for short ) are the contactors specially used for make and break of low voltage shunt capacitors and widely used in reactive power used for make and break of capacitor up to 60kvar in electric power system of AC 50Hz and rated working voltage 380V for the purpose of improvement of power factor. We have 9A, 12A, 18A, 22A, 32A,40A, 50A,65A, 75A, 85A Contactors.

IEC utilization categories

The current rating of the AC/DC contactor depends on utilization category. Example IEC categories in standard 60947 are described as:

AC-1 - Non-inductive or slightly inductive loads, resistance furnaces

AC-2 - Starting of slip-ring motors: starting, switching-off

AC-3 - Starting of squirrel-cage motors and switching-off only after the motor is up to speed. (Make Locked Rotor Amps (LRA), Break Full Load Amps (FLA))

AC-4 - Starting of squirrel-cage motors with inching and plugging duty. Rapid Start/Stop. (Make and Break LRA)

Specifications:

Operation Condition:

1. When the switch is closed condenser must be discharged before recharged.

(Maximum residual voltage at terminals ≤ 50V)

2. In working voltage 500V (Ue=500V), 100,000 times for UKC1(D)-9C~40C and 80,000 times for UKC(D)1-50C~85C

3. To prevent short current, gG type Fuse must be 1.5~2 times than rated current.

4. It must be separated from resistant wire

5. The average temperature over a 24-hour period, in accordance with standards IEC70 and 831 is 45 degree

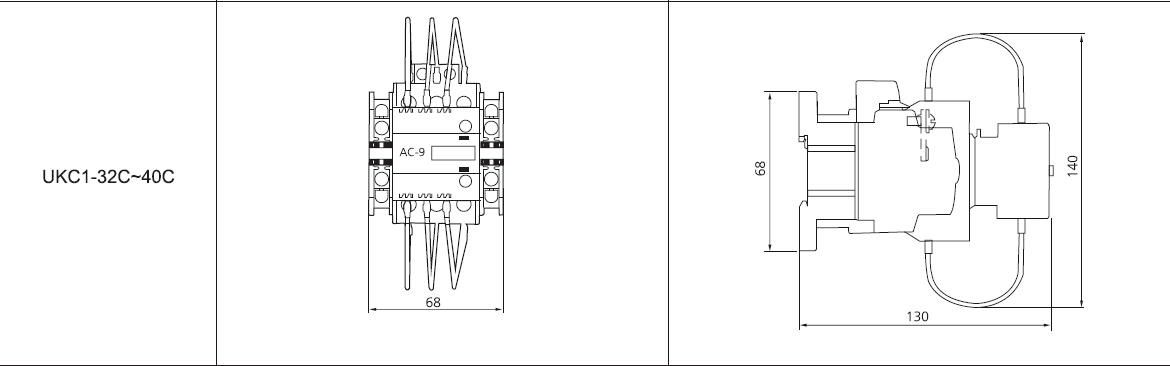

External Dimensions:

Main products:

Rotary isolator switch, weatherproof switch socket, industrial plug socket, cable float level switch, terminal junction box, solar photovoltaic inverter, circuit breaker AC contactor, thermal overload relay, industrial power distribution box and etc

Zhejiang Kripal Electric Co.,Ltd is one of the national new high-tech enterprises integrated of researching, producing and selling water-proof electric, low-voltage electric and new energy electric products.

Established in 1992, Kripal now is gradually becoming the influential electric manufacturer in China after many years well development.

With a great brand effect , Kripal has the completed sales and service network with its products been exported to all over the world like Europe,Australia, American,Africa, Oceania, Southeast of Asia, and district of HongKong, Macaw and Taiwan. Kripal is awarded the title of “Famous Export Brand”.

Kripal now has the factory area 12000 m2 and workers more than 500, including over 10 senior engineers, 30 professional technicists and 30 senior executives. Products pass the certification of CE, CB, UL, VDE, TUV, KEMA, SAA, SEMKO, RoHS, and China CCC as well as quality management system such as ISO9001.

Cooperated with domestic and foreign R&D institutions, Kripal successively developed more than 100 independent intellectual properties; some of them were successfully awarded the national patent for invention and utility models as its well performance. Kripal now has been selected as provincial technical research and development center and patent demonstration enterprise by government.

Kripal always adheres to the enterprise principle of “Scientific management, Independent Innovation, Coordinating Collaboration and Cultural Brand”, keep faith of “moral first”, and fulfill the core value of “double-win cooperation with customers, creating profit for company owners, getting rich together with workers, building harmony for society” and fight for the mission of “make the dream of world famous electrical brand come true”.

Workers: 650 (including workers in Taizhou factory)

Engineers: more than 30

QA/QC: more than 20

Certificate: CQC, CB, CE,VDE,UL, TUV, Semko, KEMA, SAA, ISO9001

The land space of the company: amounts to 25000m2

What we do: products’ design, mold building, production of parts (injection & punching), assembling,
                      products’ inspection, testing and etc

KRIPAL adheres to the belief - "scientific management, independent innovation, coordinating collaboration, and cultural brand" and the enterprise principle - "we are advancing every day".
