    1000V DC Electrical Disconnect Switch

    Ask Lasest Price
    Brand Name : KRIPAL
    Model Number : UKPD32
    Certification : CE TUV
    Price : negotiable
    Payment Terms : T/T, L/C
    Supply Ability : 50000 pcs per month
    Delivery Time : 20 days after deposit or depends on ordering quantity
    • Product Details
    • Company Profile

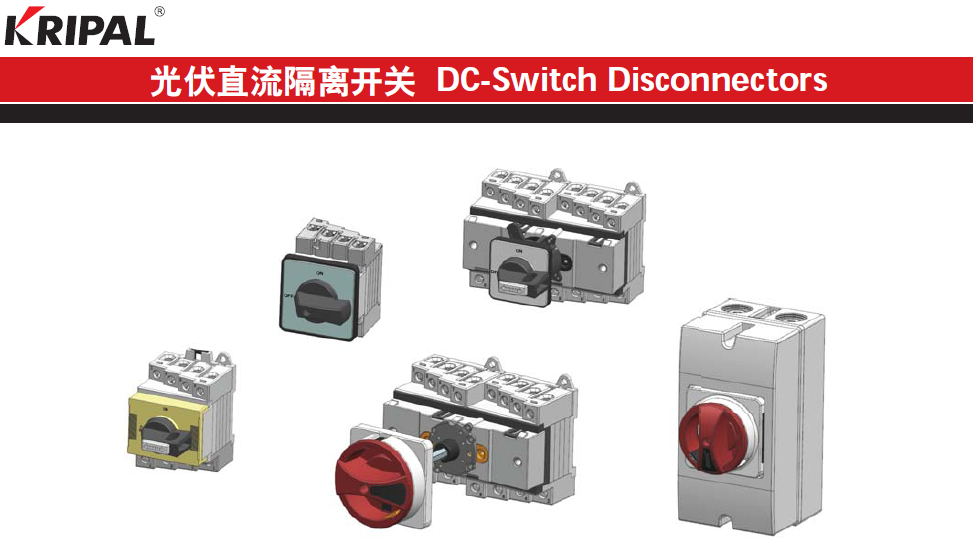

    1000V DC Electrical Disconnect Switch


    High quality 1000V DC Rotary Isolator Switch with black handle

    Generally Speaking,the voltage on DC side of PV system usually is higher,could be as high as 1000V DC.So we need switchgear of Ue=1000V DC.The branch circuit is combiner box needs protection,while the main circuit equipment in combiner box and DC cabinet need isolating function1.Switching with load of 1000V DC or remote operating function.in addition,it needs to install switchgear 2 on DC side of inverter cabinet ti switch with loads,plays a role of isolating for overhauling.

    Description:

    KRIPAL offers a comprehensive range of isolating switches designed with safety in mind stand-stone and enclosed formats, this switch range are padlockable and availiable in yellow/ red or grey/black making it idea for any electrical isolation requirement, such as repair, maintenance installation and inspection.


    Features:

    1. Compact and suitable wire space is limited
    2. rail mounting for easy installation
    3. Easy cable access via M20/25 knockouts
    4. Load-breaking up to 8 times rated current making it ideal for motor isolation
    5. Double-break with silver rivets-superior performace, reliablity and long lasting.
    6. Enclosure: brand-new PC, White
    7. Large padlockable red/yellow or grey/black handles
    8. Mechanical life: 20000
    9. Electrical life: 2000


    Specifications:

    ProductDC rotary isolator switchModel NumberUKPD32-X
    Rated VoltageDC 1000VPolarizedNo
    Poles2 SIDESMounting TypeWall
    Rated Current16, 25, 32AIP RatingIP66
    Switch MaterialNylon PA6BoxPolycarbonate
    Limit short circuit capabilityDC1500V 15KABreaking CapabilityDC 1500V 15KA
    Wire Size4.0-16.0mmWorking temperature-5 - +65centigrades
    Gland knockoutsM20 or M25StandardIEC60947-3: 2005




    Applications:

    UKPD32 series DC solar switch disconnetors in plastic enclosure, are apllicable in 1-15KW residential or commercial photovoltaic system, independent with inverter.This model are designed to keep solar more safe, the higest voltage can be reached 1000V.To ensure its stability and long service.


    Mouting:

    This DC rotary isolator switch can be mounted vertically, horizongtally, sideways and remians its IP66/IP67 protection rating
