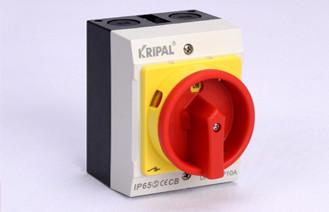

Emergency Stop On Off 10A IP65 Rotary Isolator Switch Safety
Disconnect Switch Semko lockable
KRIPAL HAS THE DESIGN PATENT FOR THIS SERIES SWITCHES.
UKP Switchgear housed in moulded enclosures provide the basis for
most industrial applications, and the added benefits offered by the
'UKP' range provide the user with a wealth of opportunities while
selecting the correct item for a specific application. Enclosure
IP65 sealing. Good sealing is a feature of the 'UKP' range as is
the ability to add a selection of auxiliary blocks providing
additional contacts and a choice of Neutral assemblies.
The UKP series rotary switches are multipurpose high-tech productes
with compact and reasonable structure, small volume and wide
function adjustment. They're also domestic leading products.
With the UKP range comes an important safety feature, which
prevents the enclosure cover being removed when the device has been
padlocked in the 'Off' position. When combined with the excellent
on-load breaking capacity of the UKP family, this feature ensures
that the term 'Safety Switch' is fully satisfied.
UKP0-3P10A
Description:
1. These rotary isolator switches are used to switch power to
commercial / light industrial applications,widely used in various
engineering repair trucks.
2. The red switch can be used as an emergency stop, and can be
locked in the “OFF” position using the yellow surrounding ring and
padlock.
3. Easy cable access via M20/25 knockouts
4. The screws are captive retained and would not drop off when the
lid is turned over.
5. Earth terminal is included
6. Enclosure: brand-new PC, White
7. Standard: manufactured and tested as IEC 60947-3
8. Rated current choosable,three optional frames.
Specifications:
| UKP |
| No. | Tech Parameters | requirement |
| 1 | Rated voltage | 230-440V |
| 2 | rated current | UKP0 | 10A,16A,20A |
| UKP1 | 20A,25A,32A |
| UKP3 | 32A,40A,50A,63A |
| UKP5 | 63A,80A,100A,125A,150A |
| 3 | frequency | AC50HZ |
| 4 | No. of poles | 2P,3P,4P,5P |
| 5 | No. of layers | make as required with circuit diagram |
| 6 | panel size | 64*64mm |
| 7 | color of handle | Black/red |
| 8 | Working temperature | -25°C~+40°C |
| 9 | Working height | ≤2,000m |
| 10 | Relative humidity | ≤50% with highest temperature +40°C,but allow higher humidity with
low temperature less than 40°C |
| (eg.: humidity 90%----teperature20°C) |
| 11 | Installation conditions | pollution class III |
| 12 | Mechanical life | 0.1*106times |
| 13 | Electrical life | 0.03*106times |
| 14 | Operative frequency | 120times/hour |
| 15 | Transform angle | 90° |
Optional:
a. Netural contacts
b. 1NO+1NC module
c. Color of handle and surroundings
d. Rated current
e. Frame size
Advantages:
1. Safe and reliable, the safe touch design of the connection
terminals can also be used to prevent the bolts from loosing,
higher reliability from the double-break contact head on the
connection point;
2. Easy assembly and disassembly, bolt mount, central mount, box
mount, guide rail mount, etc. provided;
3. Flexible and highly efficient, literally unlimited connection
point types including more than 900 commonly used, able to provide
multiple solutions;
4. Complete varieties, ON/OFF switches of 10A, 16A, 20A ,25A, 32A,
40A, 50A, 63A, 80A, 100A
Applications:
Disconnect Switches offer ideal features for their use as: ON-OFF
Switches, Emergency-Off Switches, Maintenance Switches, Safety
Switches, Distribution Switches, and Motor switches
General Information:
Certificate: CCC, CE, CB, UL, Semko, KEMA, TUV, SAA, ISO9001-2000
and etc
Main market: Europe, Australia, Middle East, Asia, Africa, South of
America.
Marketing channels: Internet (Google, B2B, Homepage); Exhibition
(Canton Fair twice per year;
overseas exhibition twice per year at least); Standing Clients;
