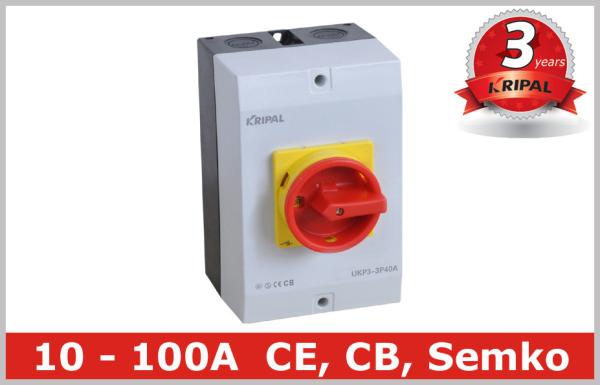

40A Weatherproof 4 Pole Rotary Isolator Safety Disconnect Switch


KRIPAL HAS THE DESIGN PATENT FOR THIS SERIES SWITCHES.

Switchgear housed in moulded enclosures provides the basis for most industrial applications, and the added benefits offered by the 'UKP' range provide the user with a wealth of opportunities when selecting the correct item for a specific application. Enclosure IP65 sealing. Good sealing is a feature of the 'UKP' range as is the ability to add a selection of auxiliary blocks providing additional contacts and a choice of Neutral assemblies.

Description:

1. These rotary isolator switches are used to switch power to commercial / light industrial applications.

2. The red switch can be used as an emergency stop, and can be locked in the “OFF” position using
the yellow surrounding ring and padlock.

3. Easy cable access via M20/25 knockouts

4. The screws are captive retained and would not drop off when the lid is turned over.

5. Earth terminal is included

6. Enclosure: brand-new PC, White

7. Standard: manufactured and tested as IEC 60947-3


Specifications:

Optional:

a. Netural contacts

b. 1NO+1NC module

c. Color of handle and surroundings


Advantages:

Small size, multi-function, compact structure, high quality material, good insulation, agile operation, reliability, safety, good appearance.


Applications:

Disconnect Switches offer ideal features for their use as: ON-OFF Switches, Emergency-Off Switches, Maintenance Switches, Safety Switches, Distribution Switches, and Motor switches

General Information:

Certificate: CCC, CE, CB, UL, Semko, KEMA, TUV, SAA, ISO9001-2000 and etc

Main market: Europe, Australia, Middle East, Asia, Africa, South of America.

Marketing channels: Internet (Google, B2B, Homepage); Exhibition (Canton Fair twice per year; overseas exhibition twice per year at least); Standing Clients;

What we do by ourselves:

Mould design, mould building, mould maintenance, production of parts & components, parts & components assembling, packing, test for parts & finished products, publicity-enterprise planning

Departments:

Administrative Department, HR Department, Financial Department, Internal Trade Department, International Trade Department, Technical Department, Planning Department, Production Department, Purchasing Department, Quality Inspection Department

Workshops:

Mould-building workshop, injection workshop, punching workshop, Instrument Workshop, Welding workshop, Assembling workshop, Warehouse and etc

Zhejiang Kripal Electric Co.,Ltd is one of the national new high-tech enterprises integrated of researching, producing and selling water-proof electric, low-voltage electric and new energy electric products.

Established in 1992, Kripal now is gradually becoming the influential electric manufacturer in China after many years well development.

With a great brand effect , Kripal has the completed sales and service network with its products been exported to all over the world like Europe,Australia, American,Africa, Oceania, Southeast of Asia, and district of HongKong, Macaw and Taiwan. Kripal is awarded the title of “Famous Export Brand”.

Kripal now has the factory area 12000 m2 and workers more than 500, including over 10 senior engineers, 30 professional technicists and 30 senior executives. Products pass the certification of CE, CB, UL, VDE, TUV, KEMA, SAA, SEMKO, RoHS, and China CCC as well as quality management system such as ISO9001.

Cooperated with domestic and foreign R&D institutions, Kripal successively developed more than 100 independent intellectual properties; some of them were successfully awarded the national patent for invention and utility models as its well performance. Kripal now has been selected as provincial technical research and development center and patent demonstration enterprise by government.

Kripal always adheres to the enterprise principle of “Scientific management, Independent Innovation, Coordinating Collaboration and Cultural Brand”, keep faith of “moral first”, and fulfill the core value of “double-win cooperation with customers, creating profit for company owners, getting rich together with workers, building harmony for society” and fight for the mission of “make the dream of world famous electrical brand come true”.

Workers: 650 (including workers in Taizhou factory)

Engineers: more than 30

QA/QC: more than 20

Certificate: CQC, CB, CE,VDE,UL, TUV, Semko, KEMA, SAA, ISO9001

The land space of the company: amounts to 25000m2

What we do: products’ design, mold building, production of parts (injection & punching), assembling,
                      products’ inspection, testing and etc

KRIPAL adheres to the belief - "scientific management, independent innovation, coordinating collaboration, and cultural brand" and the enterprise principle - "we are advancing every day".
