UKF1 series IP66 Double Pole Electrical Weatherproof Switch Socket Outlet 63A For Outdoor Isolation

KRIPAL IS THE REAL BUILDER “UKF”

Descriptions:

1. The waterproof isolating switch is suitable for outdoor isolation use in different weather condition including single, double and triple pole, four pole switches 20/35/45/63 Amps,

2. The base provides for easier termination and more wiring room, switch dimensions are 165mm-82mm with an overall height of 85 mm.

3. Fixed earth and neutral connector bars with dual clamping screws per tunnel provide equal as tripping lengths and secure clamping for all cables, terminal bore size 5-6.6mm.

4. A safety feature for mounting switches to metal structures is the insulating caps that cover base mounting screws to totally protect them from any live cables.

5. Each unit is supplied with screwed conduit plugs and screwed reducers for easy connection to 25mm or 20mm conduits and screw cap. Screw caps must be installed to ensure IP Rating .

6. The impact Resistant base and cover will survive the hardest knocks in almost any installation. The two sections are sealed with a one piece weather seal gasket.

7. For security, a 7mm diameter hole is provided for padlocking the lever in the OFF position .

8. Deep molded barriers protect the operating lever from physical abuse or accidental switching.

Wiring:

1. Cables looped in and out from overhead.

2. In and out from underground

3. In and out straight through the switch.

4. Two 25mm rear knockouts are moulded in the base for surface mounting with concealed wiring.

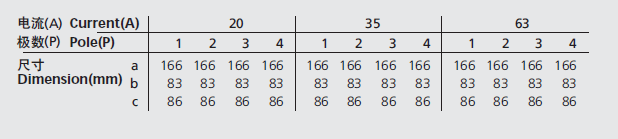

Specifications:

Applications:

1: UKF1/2/3- Series weatherproof switch is used to isolate to ensure the safety of maintenance work.

2: It can also be used for certain circuit switching operation to change the system runs

3: UKF1/2/3- Series weather protected switch has superior waterproof and dustproof function, along with anti-corrosion, anti-UV, cold temperature, aging, etc

4: UKF1/2/3- Series waterproof switch has perfect protection to your safe for using of electricity in the rain, dust, freezing, high temperature, strong ultraviolet radiation and other harsh outdoor environments demand.

5: It is suitable for any outdoor application conditions

Declare:

KRIPAL is the leading manufacturer for this series switch. As time going by, there are some companies who

copy our product & use our model number. Hereby, we claim that “UKF” is named by KRIPAL and KRIPAL is

the first one who use it as the code for isolating switches, “U” means “you” our valued clients, “K” is for KRIPAL; “F” is abstracted from “weatherproof”.

If you are looking for UKF weatherproof switches, please contact us freely,

Zhejiang Kripal Electric Co.,Ltd is one of the national new high-tech enterprises integrated of researching, producing and selling water-proof electric, low-voltage electric and new energy electric products.

Established in 1992, Kripal now is gradually becoming the influential electric manufacturer in China after many years well development.

With a great brand effect , Kripal has the completed sales and service network with its products been exported to all over the world like Europe,Australia, American,Africa, Oceania, Southeast of Asia, and district of HongKong, Macaw and Taiwan. Kripal is awarded the title of “Famous Export Brand”.

Kripal now has the factory area 12000 m2 and workers more than 500, including over 10 senior engineers, 30 professional technicists and 30 senior executives. Products pass the certification of CE, CB, UL, VDE, TUV, KEMA, SAA, SEMKO, RoHS, and China CCC as well as quality management system such as ISO9001.

Cooperated with domestic and foreign R&D institutions, Kripal successively developed more than 100 independent intellectual properties; some of them were successfully awarded the national patent for invention and utility models as its well performance. Kripal now has been selected as provincial technical research and development center and patent demonstration enterprise by government.

Kripal always adheres to the enterprise principle of “Scientific management, Independent Innovation, Coordinating Collaboration and Cultural Brand”, keep faith of “moral first”, and fulfill the core value of “double-win cooperation with customers, creating profit for company owners, getting rich together with workers, building harmony for society” and fight for the mission of “make the dream of world famous electrical brand come true”.

Workers: 650 (including workers in Taizhou factory)

Engineers: more than 30

QA/QC: more than 20

Certificate: CQC, CB, CE,VDE,UL, TUV, Semko, KEMA, SAA, ISO9001

The land space of the company: amounts to 25000m2

What we do: products’ design, mold building, production of parts (injection & punching), assembling,
                      products’ inspection, testing and etc

KRIPAL adheres to the belief - "scientific management, independent innovation, coordinating collaboration, and cultural brand" and the enterprise principle - "we are advancing every day".
