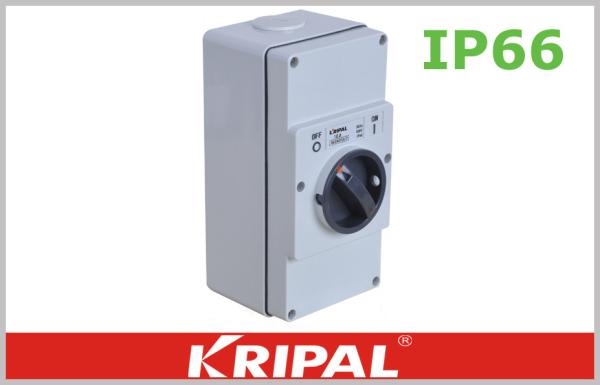

Safety 3 Position Rotary Switch IP66 Weatherproof Outdoor Sockets

KRIPAL IS THE FIRST ONE WHO MANUFACTURE THE 56/66 SERIES WEATHERPROOF SWITCH/SOCKET/PLUG/BOX IN CHINA MAINLAND

Description:

56SW Series Weatherproof Surface Switches are available from 250V, 10A to 500V 50A. They incorporate a positive, rotary switch action. 'ON' and 'OFF' Positions are clearly marked and there is provision for two padlocks.

Hole diameter is 8mm. If locking is required in the 'ON' position, simply drill a hole where necessary.

To provide easier wiring of our 56 Series Three Pole 50A Switch, a deeper two gang enclosure and centrally mounted option (Cat. No. 56SW363/2), allows additional room for wiring associated with this application.

Earth and neutral connectors accommodating 3 x 6mm2 cables are supplied

Wiring:

1. Cables looped in and out from overhead.
2. In and out from underground
3. In and out straight through the switch.
4. Two 25mm rear knockouts are moulded in the base for surface mounting with concealed wiring.
5. Samples provided freely.

Specifications:

Current Range:

56SW110, 56SW116, 56SW120, 56SW132, 56SW210, 56SW216, 56SW220, 56S232, 56SW250, 56SW310, 56SW320, 56SW332, 56SW350, 56SW363, 56SW350/2, 56SW363/2

IP66 series:

industrial plug, industrial coupler, weatherproof switch, weatherproof socket, weatherproof power point, mounting enclosures, weatherproof box and etc.

Zhejiang Kripal Electric Co.,Ltd is one of the national new high-tech enterprises integrated of researching, producing and selling water-proof electric, low-voltage electric and new energy electric products.

Established in 1992, Kripal now is gradually becoming the influential electric manufacturer in China after many years well development.

With a great brand effect , Kripal has the completed sales and service network with its products been exported to all over the world like Europe,Australia, American,Africa, Oceania, Southeast of Asia, and district of HongKong, Macaw and Taiwan. Kripal is awarded the title of “Famous Export Brand”.

Kripal now has the factory area 12000 m2 and workers more than 500, including over 10 senior engineers, 30 professional technicists and 30 senior executives. Products pass the certification of CE, CB, UL, VDE, TUV, KEMA, SAA, SEMKO, RoHS, and China CCC as well as quality management system such as ISO9001.

Cooperated with domestic and foreign R&D institutions, Kripal successively developed more than 100 independent intellectual properties; some of them were successfully awarded the national patent for invention and utility models as its well performance. Kripal now has been selected as provincial technical research and development center and patent demonstration enterprise by government.

Kripal always adheres to the enterprise principle of “Scientific management, Independent Innovation, Coordinating Collaboration and Cultural Brand”, keep faith of “moral first”, and fulfill the core value of “double-win cooperation with customers, creating profit for company owners, getting rich together with workers, building harmony for society” and fight for the mission of “make the dream of world famous electrical brand come true”.

Workers: 650 (including workers in Taizhou factory)

Engineers: more than 30

QA/QC: more than 20

Certificate: CQC, CB, CE,VDE,UL, TUV, Semko, KEMA, SAA, ISO9001

The land space of the company: amounts to 25000m2

What we do: products’ design, mold building, production of parts (injection & punching), assembling,
                      products’ inspection, testing and etc

KRIPAL adheres to the belief - "scientific management, independent innovation, coordinating collaboration, and cultural brand" and the enterprise principle - "we are advancing every day".
