Motor Rated Molded Case Circuit Breaker Earth Leakage 100mA 300mA 500mA

UKM30L Series Earth Leakage Circuit Breaker is developed with hi-tech in 1990S with completed protection functions, high performance, smart dimension which is the ideal replacements for the olds.

Description:

This breaker can be installed vertically( upright) or horizontally(transverse). Wiring of the breaker can not be in adverse direction, that means power supply line must beconnected to terminal 1, 3 and 5, and the load line connected to terminal 2, 4 and 6. The rated residual operating current In and the maximum breaking time can be adjusted on site according to practical condition.

The leakage protection module still can work normally when the phase voltage reduce to 50V. It has the same overall size with the AM1 series breakers, which make the installation more changeable.

Specifications:

Working conditions for earthe leakage circuit breaker:

1. Altitude: <=2000m

2. Ambient medium temperature should be within -5degree to +40 degree(+45degree fo

marine products)

3. Pollution class : III

4. It can withstand the effect of damp air;

5. It can withstand the effect of salt mist or oil mist;

6. It can withstand the effect of moulds;

7. The max inclination is +-22.5degree

8. It still can work reliably when the ship subjects to normal vibration;

9. It still can work reliably if the product subjects to the earthquake(4g)

10. The surrounding medium should be free from explosion danger, the installation site should be

far away from gas or conductive dust that would erode the metal or destroy the insulation

11. Keep away from rain or show.

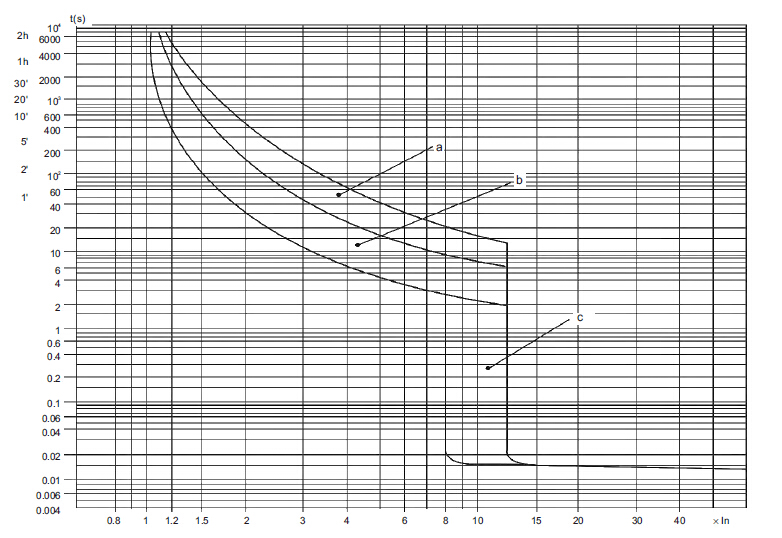

Overcurrent Protection:

Zhejiang Kripal Electric Co.,Ltd is one of the national new high-tech enterprises integrated of researching, producing and selling water-proof electric, low-voltage electric and new energy electric products.

Established in 1992, Kripal now is gradually becoming the influential electric manufacturer in China after many years well development.

With a great brand effect , Kripal has the completed sales and service network with its products been exported to all over the world like Europe,Australia, American,Africa, Oceania, Southeast of Asia, and district of HongKong, Macaw and Taiwan. Kripal is awarded the title of “Famous Export Brand”.

Kripal now has the factory area 12000 m2 and workers more than 500, including over 10 senior engineers, 30 professional technicists and 30 senior executives. Products pass the certification of CE, CB, UL, VDE, TUV, KEMA, SAA, SEMKO, RoHS, and China CCC as well as quality management system such as ISO9001.

Cooperated with domestic and foreign R&D institutions, Kripal successively developed more than 100 independent intellectual properties; some of them were successfully awarded the national patent for invention and utility models as its well performance. Kripal now has been selected as provincial technical research and development center and patent demonstration enterprise by government.

Kripal always adheres to the enterprise principle of “Scientific management, Independent Innovation, Coordinating Collaboration and Cultural Brand”, keep faith of “moral first”, and fulfill the core value of “double-win cooperation with customers, creating profit for company owners, getting rich together with workers, building harmony for society” and fight for the mission of “make the dream of world famous electrical brand come true”.

Workers: 650 (including workers in Taizhou factory)

Engineers: more than 30

QA/QC: more than 20

Certificate: CQC, CB, CE,VDE,UL, TUV, Semko, KEMA, SAA, ISO9001

The land space of the company: amounts to 25000m2

What we do: products’ design, mold building, production of parts (injection & punching), assembling,
                      products’ inspection, testing and etc

KRIPAL adheres to the belief - "scientific management, independent innovation, coordinating collaboration, and cultural brand" and the enterprise principle - "we are advancing every day".
