1Pole 10A IP66 Weatherproof Isolator Switch Australian standard
Product Description
Waterproof isolating switch has super waterproof and dustproof
function, can effectively prevent the entry of dust and oil, in
case of rain or strong water spraying will not affect the
performance of the product; At the same time, it has the
characteristics of anti-corrosion, anti-ultraviolet, cold, high
temperature, anti-aging, etc. It can solve your needs for safe
electricity use in harsh outdoor environment such as rain, dust,
freezing, high temperature and strong ultraviolet light. The
weather-resistant isolating switch has a wide range of applications
and is suitable for any outdoor application conditions.

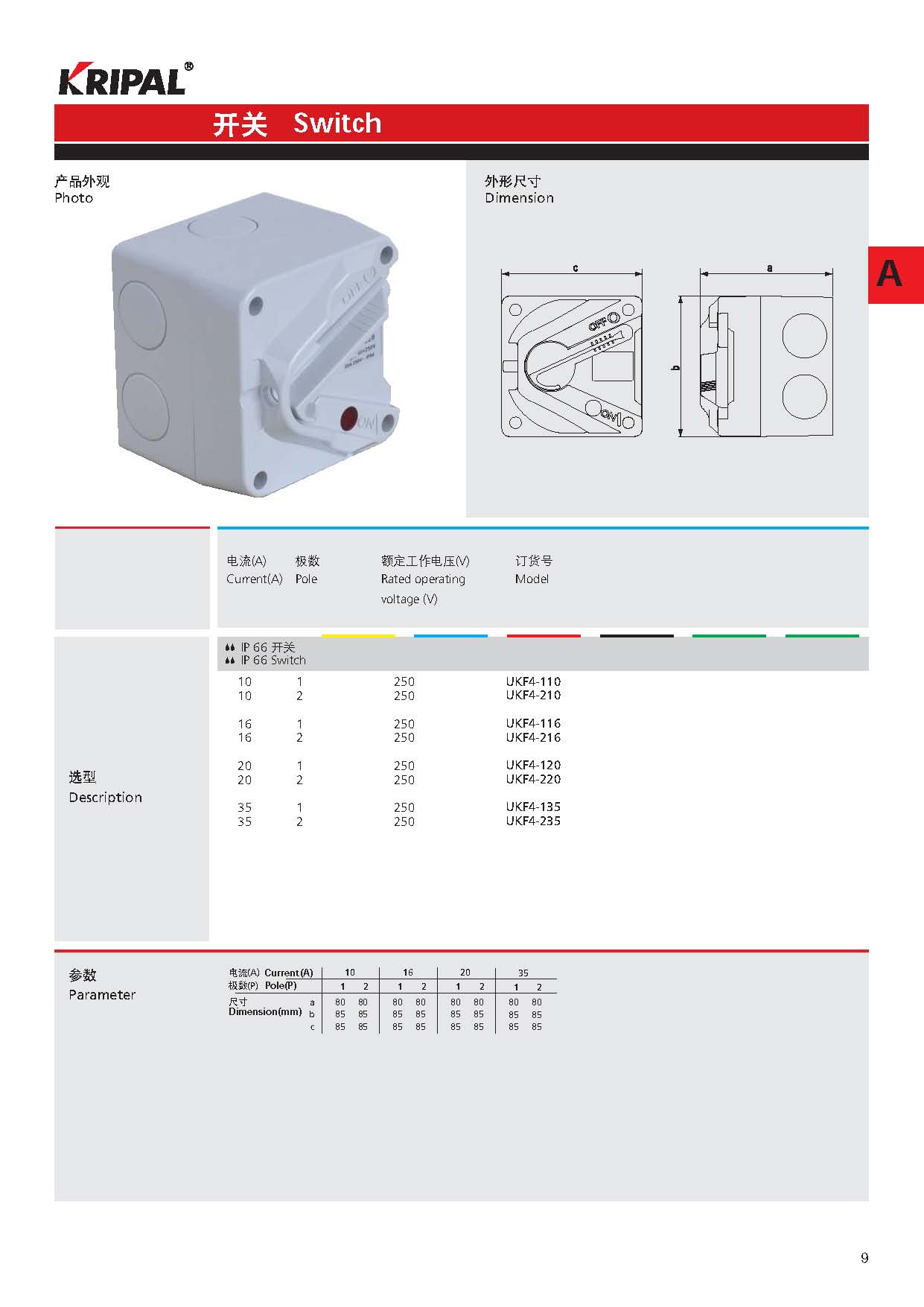

| Brand Name | KRIPAL |
| Model | UKF1,UKF2,UKF3,UKF4 |
| Type | Standard Grounding |
| Number of poles | 1P,2P,3P,4P |
| Current | 10A,16A,20A,35A,63A |
| Frequency | 50/60Hz |
| Rated Voltage | 250V/500V |
| Protection | IP66 |
| Material | PC,Copper |
| Standard | IEC/EN60947,AS/NZS 3123:2005 |
| Identification | SAA,SEMKO,CE CERTIFICATE,CB TEST REPORT |
| Color | Gray&White |
| Warranty | One and a half years |
Product Feature
1. The connecting rod for grounding and zero connection is
installed with double tightening screws, which can effectively fix
all cables on the junction box and clamp reliably to prevent
leakage
2.The insulation cap covers the base mounting screw to prevent
contact with the live cable. The insulation cap can be reliably
installed on the metal structure switch. The combination of two
plastic screws of the WHD panel cover and the base can fully avoid
electricity leakage.
3. Each device is provided with threaded conduit joint and threaded
reducer for connecting 25mm or 20mm conduit and nut; Nuts must be
installed to ensure IP rating.
4. Impact resistant base and cover can withstand severe impact
under almost all installation conditions. A weather resistant
waterproof sealing ring separates the base and cover.
5. For safety purposes, use 7mm diameter holes in heavily machined
cast baffles to lock the joystick during maintenance or overhaul.
Deep-mounted baffle mounts to prevent accidental switch operation
of the control handle.
6. Appearance color: the standard color of the switch is gray and
white.
Product Application
Products are widely used in smelting, chemicals, power electronics,
airports, railways, construction sites, mines, quarries, water
supply and drainage treatment plants, automobile manufacturing,
ports, docks, shopping malls, hotels and other places. When used as
an overhaul switch and a safety switch, the positions of "on" and
"off" should be clearly marked, and a padlock hole should be
provided. The padlock can be installed in the "off" position; if it
is to be locked in the "open" position, just Lock a hole; to ensure
user safety.
Packaging & Shipping
| Delivery Time | 25 working days for bulk order and depend on ordering quantity |
| Shipment Port | Ningbo & Shanghai |
| Trade Term | EXW, FOB, CIF as customer need |
| Payment | T/T,L/C,D/P |
| Packing | Standard Export Master Package, but we can do your own requested
Package |
| Shipping | By air,By sea,By express. |
Our service
1.Strong production capacity and strict quality control system;
2.Please kindly inform us which items you are interested&the
reasonable price will be provided you upon receipt of your new
inquiry ASAP;
3.Answer your question detailed;
4.OEM & ODM are available; there is an our own mould tooling center
in KRIPAL factory;
5.Solved the problem with you during using our products.
Our company
Zhejiang Kripal Electric Co., Ltd founded in 1992 is specialized in
circuit breaker ,AC contactor , industrial plug and socket, weather
protected switchgear, and others. With the repaid development in
last 29years. KRIPAL act as one of the biggest manfactures in
eleectrical industry in China.
With a wide marketing network ,the products are exported to Europe
,Amercia, Afric , South Asia,Hongkong , Macaw,Taiwan and othe areas
and enjoy high reputation in the international market .
Welcome to Kripal!
