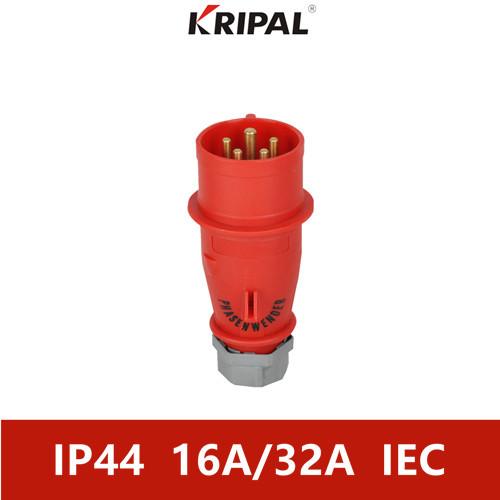

380V IP44 3 Phase Industrial Sockets And Plug IEC standard
Product | Industrial Plug |
Rated current | 16A,32A |
No. of poles | 2P+E, 3P+E, 3P+N+E |
Voltage | 220V-250V; 380V-415V |
Protection degree | IP44 |
Power type | Single Phase, Three Phase |
Conductor cross-sectional area (mm2) | 1.5-4(16A), 2.5-10(32A) |
Material | NYLON, PA, PC, copper |
Color | 110V(yellow) 220V,230V(blue)
380V,415V,440V(red) 500V(black) |
| Current | Position | Voltage | Color | Poles | Model |
| 16A | 9h | 220-250V | Blue | 3P+E | UKS-G144-9 |
| 6h | 380-415V | Red | 3P+E | UKS-G144-6 |
| 9h | 220-250V | Blue | 3P+N+E | UKS-G154-9 |
| 6h | 380-415V | Red | 3P+N+E | UKS-G154-6 |
| 32A | 9h | 220-250V | Blue | 3P+E | UKS-G244-9 |
| 6h | 380-415V | Red | 3P+E | UKS-G244-6 |
| 9h | 220-250V | Blue | 3P+N+E | UKS-G254-9 |
| 6h | 380-415V | Red | 3P+N+E | UKS-G254-6 |
Product Feature
1. Safe and Reliable
①Rated voltage is indicated by the color of the shell, which is
clear at a glance
②The diameter pole number of the grounding contact of the same
specification product is different to prevent accidental insertion
③Protection against electric shock
④High protection level:IP44 andIP67
⑤With a keeping device, after plugging each other to prevent
falling off ,so that the plug and socket can get the greatly
improved reliability.
2.Durable
①Good mechanical properties, the shell is made of high quality
engineering plastics, its high strength and impact resistance of
rubber and plastic are anti-aging, not only can be used in the
indoor, can also be used in the outdoor, durable components.
②Heat-resisting and Resistance to heat, enclosure and internal
insulating parts are heat resistant
③Resistance to pull and plug under longstanding usage.
3. Strong universality
General use over all of the world, its specifications and
varieties, can meet a variety of occasions and uses.
Product Applications
Applied to Power distribution equipment.
Applied to power systerm.
Applied to Construction site.
Applied to Port and pier.
Applied to Machinery industry.
Applied to Large modern buildings.
Applied to Large public space.
Applied to Transportation equipment.
Certification
Packaging & Delivery
Lead Time | Normally 20 days after received your fund, but mostly depends on
your quantity |
Leading Port | Ningbo or Shanghai by sea or by air. If any other loading port
please kindly advise and the extra inland transportation freight
will be added accordingly. |
Trade Term | EXW, FOB, CIF as customer need |
Payment Term | T/T 30% as deposit,and 70% before delivery. |
Packaging | Neutral carton, or according to customer requirements |
Shipping | By Air, by sea, by express |
We can provide full range of industrial plug socket
| Protection | IP44/IP67 |
| Current | 16A, 32A, 63A, 125A, 250A, 420A |
| Pins | 2P+E, 3P+E, 3P+N+E |
| Voltage | 20-25V; 40-50V; 110V-130V; 220-250V; 380-415V; 247V-690V |
| Plug & Socket | Low voltage plug socket <50V |
| Industrial plug, industrial socket |
| Wall mounted socket, wall mounted plug |
| Panel mounted socket, panel mounted plug |
| Interlocked switched socket |
| Box | Industrial portable socket box |
| Industrial plastic socket box |
| Power maintenance box (stainless) |
| Power maintenance box (plastic) |
| Industrial lighting box (plastic) |
| Industrial lighting box (metal) |
| Distribution box for exhibition box |
| T. V / Film power distribution box |
| Distribution box with power and compress air outlet |
| Accessories | Cap for 16A, 32A, 63A, 125A plug |
FAQ
Q:What is your terms of packing?
A: Generally, we pack our goods in neutral cartons.If you have
legally registered patent,we can pack the goods in your branded
boxes after getting your authorization letters.
Q:What is your terms of payment?
A: T/T 30% as deposit,and 70% before delivery.We'll show you the
photos of the products and packages before you pay the balance.
Q:Can you produce according to the samples?
A: Yes,we can produce by your samples or technical drawings. We can
build the molds and fixtures.
Q:Are you factory?
A:Yes ,our factory is located in Wenzhou, one hour to Yiwu and two
hours to Hangzhou by train, and one hour to Shanghai by air .Also
very near to Wenzhou international Airport and Yueqing train
station.
Q:Do you offer OEM service?
A:Yes,we have been providing OEM/ODM service to global
manufacturers and suppliers for many years.
Our company
Zhejiang Kripal Electric Co.,Ltd is one of the national new
high-tech enterprises integrated of researching,producing and
selling water-proof electric,low-voltage electric and new energy
electric products.
Established in 1992,Kripal now is gradually becoming the
influential electric manufacturer in China after many years well
development.
With a great brand effect,Kripal has the completed sales and
service network with its products been exported to all over the
world like Europe, Australia, Africa, Oceania, Southeast of Asia,
and district of HongKong, Macaw and Taiwan. Kripal is awarded the
title of "Famous Export Brand".
Kripal now has the factory area15000m² and workers more than
500,including over 10 senior engineers,30 professional technicists
and 30 senior executives. Products pass the certification of CE,
CB, UL, VDE, TUV, KEMA, SAA...
Cooperated with domestic and foreign R&D institutions,Kripal
successively developed more than 100 independent intellectual
properties; some of them were successfully awarded the national
patent for invention and utility models as its well performance.
Kripal now has been selected as provincial technical research and
development center and patent demonstration enterprise by
government.
The company adheres to the enterprise policy of "scientific
management, independent innovation, coordination and cooperation,
brand supremacy", abides by the commitment of "morality in the
world", practices the core values of "win-win cooperation with
customers, common prosperity with employees, benefit creation for
the company, and harmonious contribution to society", and strives
for the mission of realizing the dream of professional electrical
world brand.
