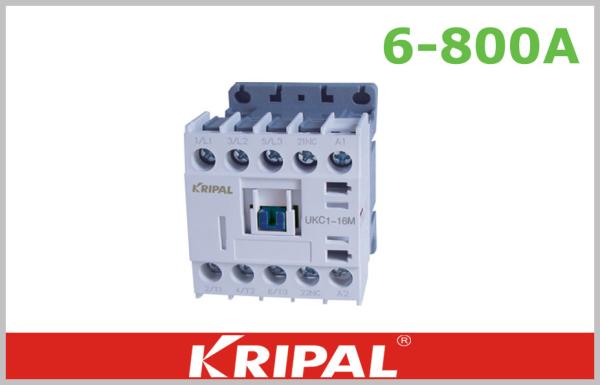

Mini type 3P 4P thermal magnetic AC relay Contactor 6A 9A 12A 16A
UKC1 series AC contactor is suitable for using in the circuits up
to rated voltage 660V AC 50/60HZ, rated current up to 800A, for
making, breaking, frequently starting & controlling the AC motor
and it can be combined with the auxiliary contacts, mechanical
interlocking unit, switchover capacitor and etc. With the thermal
relay, it is combined into the electromagnetic starter. The
contactor is produced according to IEC947-2, VDE0660 & BS5452.
Description:
Directly drive contactor by transistor output of PLC
The power consumption of the UKC1- low consumption type contactor
is 1.2W.
This contactor can be driven by a transistor output of a PLC or
electronic equipment such as photoelectric switch, or a proximity
limit switch. Therefore, it is possible for this contactor to
directly interface without interface relay for driving a 3-phase
induction motor.
Low coil power consumption greatly expands application flexibility.
Standard AC coils require 1.8 watts.
Benefits for mini AC contactors:
Low consumption power
Saving panel size
Installation space is reduced to 50% of conventional DC operated
contactors achieving high performance.
Specifications:
| Rated current | AC3(IEC60947 | AC1 Ith | Aux. Contacts | Type |
| 220-240V | 380-440V | 550-550V | 690V |
| 6A | 1.5KW 7A | 2.2KW 6A | 3KW 5A | 3KW 4A | 20A | 1NO or 1NC | UKC1-6M |
| 9A | 2.2KW 9A | 4KW 9A | 3.7KW 6A | 4KW 5A | 20A | 1NO or 2NC | UKC1-9M |
| 12A | 3KW 12A | 5.5KW 12A | 4KW 7A | 4KW 55A | 20A | 1NO or 3NC | UKC1-12M |
| 16A | 4KW 15A | 7.5KW 16A | 5.5KW 9A | 4KW 5A | 20A | 1NO or 4NC | UKC1-16M |
|
| AC coil Voltage (50/60Hz): 24, 36, 42, 48, 110, 115, 120, 127,
220/208, 220, 220/230, 230/240, 256, 277, 380/440, 400, 440, 480,
500, 550 |
|
|
| Characteristics(440VAC) |
| Rated current | 6A | 9A | 12A | 18A |
| Short circuit current(max) | 380V | 60 | 90 | 120 | 160 |
| 660V | 72 | 108 | 144 | 180 |
| Breaking current(max) | 380V | 48 | 72 | 96 | 128 |
| 660V | 60 | 90 | 120 | 150 |
| Operation cycles per hour | AC-3 | 1800 | 1800 | 1800 | 1800 |
| AC-4 | 300 | 300 | 300 | 300 |
| electrical life time (10, 000 times) | AC-3 | 100 | 100 | 100 | 100 |
| AC-4 | 20 | 20 | 20 | 20 |
| Machanical Life time(1000 times) | 1200 | 1200 | 1200 | 1200 |
| Aux contacts | Standard configuration | 1NO | 1NO | 1NO | 1NO |
| Top mointing | AU-2M/4M | AU-2M/4M | AU-2M/4M | AU-2M/4M |
| Panel Installation | guid screw | guid screw | guid screw | guid screw |
|
| Characteristices of the coil |
| Coil voltage | AC |
| coil consumption(VA) | 2 |
| Pick-ip | 32va |
| Maintain | 6va |
| Selections of pick-up voltage(%) | 80-110 |
| Selections of droup-out voltage(%) | 30-40 |
| Pick-up times | 10-20 |
| droup-out times | 35-45 |
Coil voltage(AC):
24V,36V, 42V, 48V, 110V, 115V, 120V, 200V, 220V, 240V, 256V, 277V,
380V, 400V, 440V, 480V, 500V, 550V
Main application fields for dc mini contactors:
Lighting for out-door
Car washing facilities
Crain hoist
Lighting of sports facilities
Pump
Compressor
Vending machine
Painting machine
Show case
It is possible to expand the control wire length since voltage drop
in wires is small.
