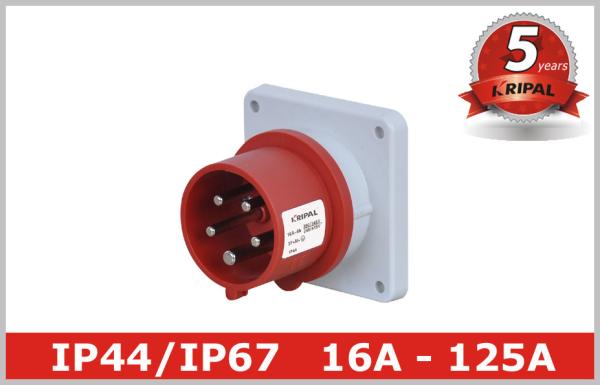

Watertight IP67 Pin and Sleeve Plug Three Phase IEC Nonmetallic

    Buy cheap Watertight IP67 Pin and Sleeve Plug Three Phase IEC Nonmetallic from wholesalers

    Buy cheap Watertight IP67 Pin and Sleeve Plug Three Phase IEC Nonmetallic from wholesalers
    • Buy cheap Watertight IP67 Pin and Sleeve Plug Three Phase IEC Nonmetallic from wholesalers

    Watertight IP67 Pin and Sleeve Plug Three Phase IEC Nonmetallic

    Ask Lasest Price
    Brand Name : KRIPAL
    Model Number : UKS-A series
    Certification : CE
    Price : negotiable
    Payment Terms : T/T, L/C
    Supply Ability : 50000 pcs per month
    Delivery Time : 20 days and depends on ordering quantity
    • Product Details
    • Company Profile

    Watertight IP67 Pin and Sleeve Plug Three Phase IEC Nonmetallic


    Watertight IP67 Pin and Sleeve Plug Three Phase IEC Nonmetallic


    Description:

    KRIPAL IEC 60309 Plugs feature housings constructed of a rugged thermoplastic which provides maximum protection from physical and environmental abuse. They also resist impact, heat, flame and chemicals, provide superior performance in low-to-high ambient temperature extremes and offer excellent UV stability for superior outdoor performance.

    The pins feature a clean brass construction that resists corrosion and provides superior contact and low electrical resistance. The rounded tips reduce insertion force and decrease wear on the contact surface area.

    All plugs are color-coded by voltage for easy identification.



    Specifications:

    Product

    Industrial Plug

    Rated current

    125A

    No. of poles

    2P+E, 3P+E 3P+N+E

    Voltage

    220V-250V; 380V-4150V

    Protection degree

    IP67

    Power type

    Single Phase, Three Phase

    Conductor cross-sectional area (mm2)

    6-25(125A)

    Material

    NYLON PA6, PC, copper

    Color

    RAL5017 (Blue); RAL3000 (Red); RAL7000 (Cyan); RAL9018 (White).

    Classification:


    Industrial Plugs are available in P+N+E (unbalanced single phase with neutral), 2P+E (balanced single phase), 3P+E (3 phase without neutral), and 3P+N+E (three phase with neutral).


    Current ratings available are 16A, 32A, 63A, 125A


    Voltage and other characteristics are represented by a color code (in three-phase plugs the stated voltage is the phase-phase voltage, not the phase-neutral voltage). The different voltages have the earth pin of a larger diameter than the others, and located in different places depending on the voltage rating, making it impossible to mate.


    Features:

    • Flawless finish
    • Safe and easy to install
    • Screwless, with insulating displacing technique
    • SafeCONTACT
    • Cable gland and sealing
    • Strain relief and protection against kinking
    • Enclosure with thread lock and safety slide
    • Standard 16A - 125A


    Applications:

    Industrial plug and socket, connector is a new generation connector appratus for power connecting, has the features such as security & reliability.They are used widly in the place such as steel smelt, petrochemical processing, electric power, electronic, railway, building ground, airport, mine.


    We can provide full range of industrial plug socket:
    ProtectionIP44/IP67
    Current16A, 32A, 63A, 125A, 250A, 420A
    Pins2P+E, 3P+E, 3P+N+E
    Voltage20-25V; 40-50V; 110V-130V; 220-250V; 380-415V; 247V-690V
    PLUG & SOCKETLow voltage plug socket <50V
    Industrial plug, industrial socket
    Wall mounted socket, wall mounted plug
    Panel mounted socket, panel mounted plug
    Interlocked switched socket
    BOXIndustrial portable socket box
    Industrial plastic socket box
    Power maintenance box (stainless)
    Power maintenance box (plastic)
    Industrial lighting box (plastic)
    Industrial lighting box (metal)
    Distribution box for exhibition box
    T. V / Film power distribution box
    Distribution box with power and compress air outlet
    AccessoriesCap for 16A, 32A, 63A, 125A plug
