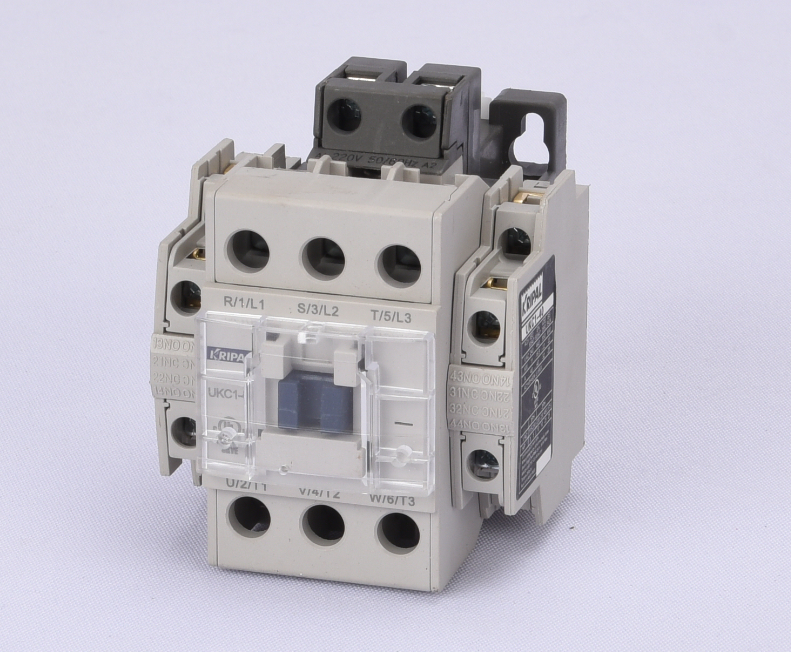

Anti-Electric 32A/40A AC/DC Contactor 220V UKC1 Series Into Electromagnetic Starter

Description:

UKC1 series AC Contactor is suitable for using in the circuits up to the rated voltage 660V AC50Hz or 60Hz,

rated current up to 630A, for making, breaking, frequently starting & controlling the AC motor. Combined with

the auxiliary contact block, timer delay & machine interlocking device etc, it becomes the delay contactor, mechanical interlocking contactor, star-delta starter.

With the thermal overload relay, it is combined into the electromagnetic starter. The product conforms to

IEC60947-4-1 standard.

Characteristics

1. One frame with two rated current classes
2. 3 pairs of main contacts
3. Design of anti-electric shock cover
4. Fixed by DIN rail or screws
5. Small size: 68mm width
6. 2NO+2NC auxiliary contacts are of standard designed
7. The accessory like contacts, switchover capacity can be mounted on the top or side
8. Be connected with the thermal overload relay directly

Specifications:

Coil voltage(AC) :

50Hz: 24V, 42V, 48V, 100V, 110V, 220V, 240V3, 80V, 400V, 415V, 440V, 500V, 550V
60Hz: 24V, 48V, 110V, 120V, 208V, 220V, 240V, 277V, 380V, 440V, 480V, 600V

Coil voltage(DC):

12V, 20V, 24V, 48V, 60V, 80V, 100V, 110V, 125V, 200V, 220V, 250V

Installation & Connection:

Installation: Fixed by 35mm guide rail or screw (M4)
Connection: Main contact: Screw(M4)crimping terminal; Wire diameter: 2-14mm2
Auxiliary contact: Screw(M3.5)crimping terminal
