    63A 380V Industrial Power Socket for IEC Electrical Power Connection

    Ask Lasest Price
    Brand Name : KRIPAL
    Model Number : UKS-C156-6
    Certification : CE
    Price : negotiable
    Payment Terms : T/T, L/C
    Supply Ability : 50000 pcs per month
    Delivery Time : 20 days and depends on ordering quantity
    • Product Details
    • Company Profile

    63A 380V Industrial Power Socket for IEC Electrical Power Connection


    63A 380V Industrial Power Socket for IEC Electrical Power Connection


    CEE Plug connections have safety standards that we are proud ofeven under the toughest of conditions.


    They impress with innovations and maximum technical efficiency right down to the last detail. That is how they make our products into solutions for the most demanding challenges. Screw less, centric strain relic’, double-secured box terminals, highly- conductive lamellar contacts and self-finding threads arc only some of the most important details that not only experienced professionals can appreciate.


    Description:


    1. Raw materials are of super brand like DSM, Mitsubishi


    2. The mould tooling are built in our own die center with advanced machine by professionals


    3. Latest design for amazing appearance and convenient plug-in & pull-out


    4. Five years warranty: any faulty items will be replaced freely

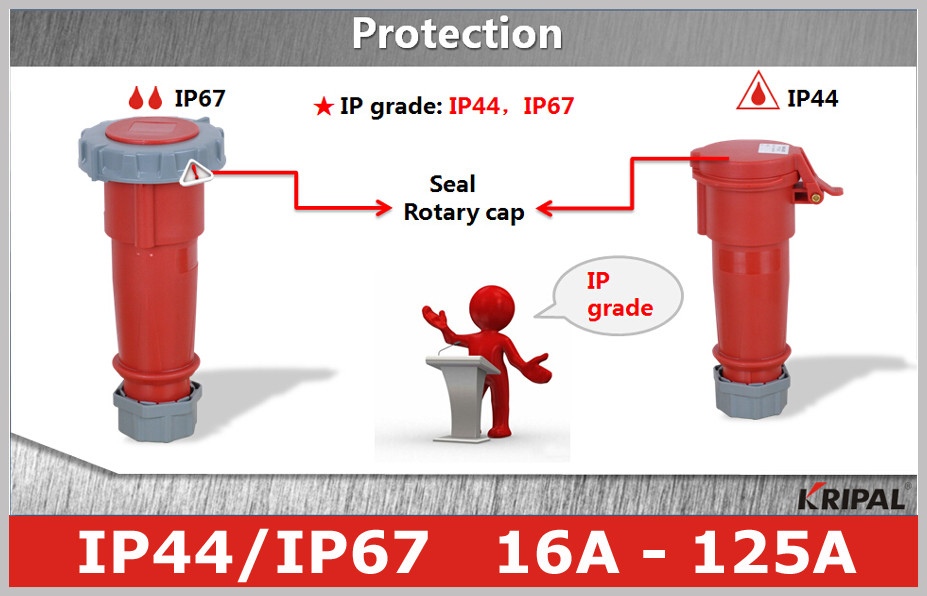

    5. Testing is proceeded in our lad regularly and the IP67 industrial socket can make a good connection even

    it is completely immersed in the water, please refer to relevant video.


    Specifications:


    Product

    Industrial socket connector

    Rated current

    16A, 32A ,63A,125A

    No. of poles

    2P+E, 3P+E, 3P+N+E

    Voltage

    380V-4150V

    Protection degree

    IP67

    Power type

    Single phase, Three phase

    Conductor cross-sectional area (mm2)

    1.5-4(16A); 2.5-10(32A); 6-25(63A); 25-70(125A)

    Material

    NYLON PA6, PC, copper

    Color

    RAL5017 (Blue); RAL3000 (Red); RAL7000 (Cyan); RAL9018 (White).


    63A 380V Industrial Power Socket for IEC Electrical Power Connection


    We can provide full range of industrial plug socket:
    ProtectionIP44/IP67
    Current16A, 32A, 63A, 125A, 250A, 420A
    Pins2P+E, 3P+E, 3P+N+E
    Voltage20-25V; 40-50V; 110V-130V; 220-250V; 380-415V; 247V-690V
    PLUG & SOCKETLow voltage plug socket <50V
    Industrial plug, industrial socket
    Wall mounted socket, wall mounted plug
    Panel mounted socket, panel mounted plug
    Interlocked switched socket
    BOXIndustrial portable socket box
    Industrial plastic socket box
    Power maintenance box (stainless)
    Power maintenance box (plastic)
    Industrial lighting box (plastic)
    Industrial lighting box (metal)
    Distribution box for exhibition box
    T. V / Film power distribution box
    Distribution box with power and compress air outlet
    AccessoriesCap for 16A, 32A, 63A, 125A plug
