    White 3 Phase Industrial Electrical Outlets Adapter 380V - 4150V

    Ask Lasest Price
    Brand Name : KRIPAL
    Model Number : UKS-F series
    Certification : CE
    Price : negotiable
    Payment Terms : T/T, L/C
    Supply Ability : 50000 pcs per month
    Delivery Time : 20 days and depends on ordering quantity
    • Product Details
    • Company Profile

    White 3 Phase Industrial Electrical Outlets Adapter 380V - 4150V


    White 3 Phase Industrial Electrical Outlets Adapter 380V - 4150V



    Description:

    Industrial plug socket with three or more poles with facilitated opening and safety eyelet
    Industrial-type mobile electric socket and plug of easier assembling


    Features:
    Our industrial plugs are of Easy installation, long life and high-reliability
    The industrial sockets can be Widely used in the machine industry, construction industry, and large vehicles.
    The cases and sockets are produced of high-grade plastic nylon 66
    The material of electric sockets and industrial plugs are extremely good insulating, thermal resistance up to +120 degrees, resistant against oil, gasoline and salt water, non-aging, resists cold and resistant against rain
    All units not only fits with the same system but also are fully compatible with units of the same system of other manufacturers

    Specifications:

    Product

    Industrial socket connector

    Rated current

    16A,32A,63A,125A

    No. of poles

    2P+E, 3P+E 3P+N+E

    Voltage

    220V-250V; 380V-4150V

    Protection degree

    IP67, IP44

    Power type

    Single Phase, Three Phase

    Conductor cross-sectional area (mm2)

    1.5-4(16A), 2.5-10(32A),6-25(125A)

    Material

    NYLON PA6, PC, copper

    Color

    RAL5017 (Blue); RAL3000 (Red); RAL7000 (Cyan); RAL9018 (White).


    We can provide full range of industrial plug socket:
    ProtectionIP44/IP67
    Current16A, 32A, 63A, 125A, 250A, 420A
    Pins2P+E, 3P+E, 3P+N+E
    Voltage20-25V; 40-50V; 110V-130V; 220-250V; 380-415V; 247V-690V
    PLUG & SOCKETLow voltage plug socket <50V
    Industrial plug, industrial socket
    Wall mounted socket, wall mounted plug
    Panel mounted socket, panel mounted plug
    Interlocked switched socket
    BOXIndustrial portable socket box
    Industrial plastic socket box
    Power maintenance box (stainless)
    Power maintenance box (plastic)
    Industrial lighting box (plastic)
    Industrial lighting box (metal)
    Distribution box for exhibition box
    T. V / Film power distribution box
    Distribution box with power and compress air outlet
    AccessoriesCap for 16A, 32A, 63A, 125A plug



    White 3 Phase Industrial Electrical Outlets Adapter 380V - 4150V


    Declaration:

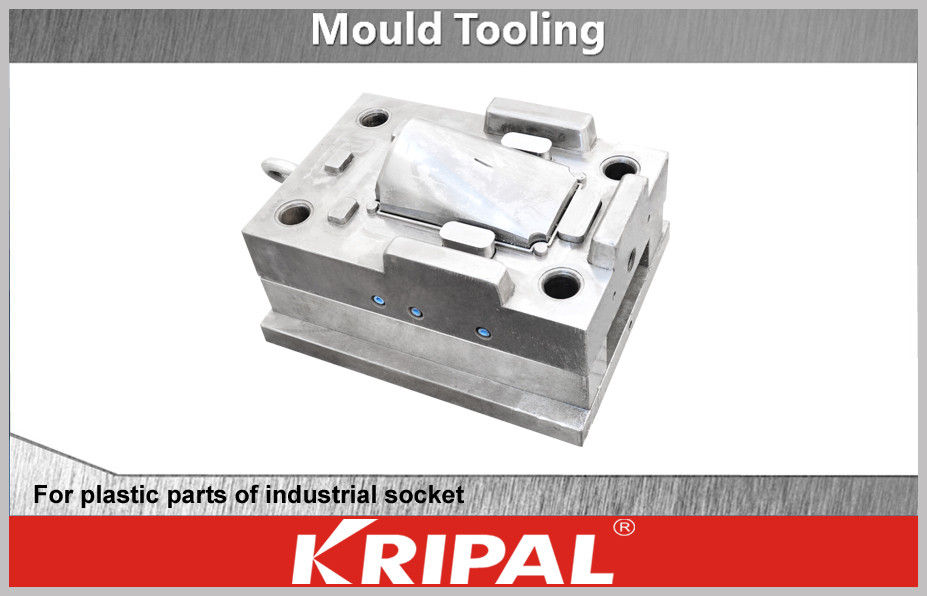

    KRIPAL is a factory with more than 20 years manufacturing experience and the mold tooling are built in our own mold tooling center. Furthermore our items are different from others to a certain degree. Hereby, we claim that KRIPAL is the only one who makes this item and the same products you got from other companies are also supplied by KRIPAL.
