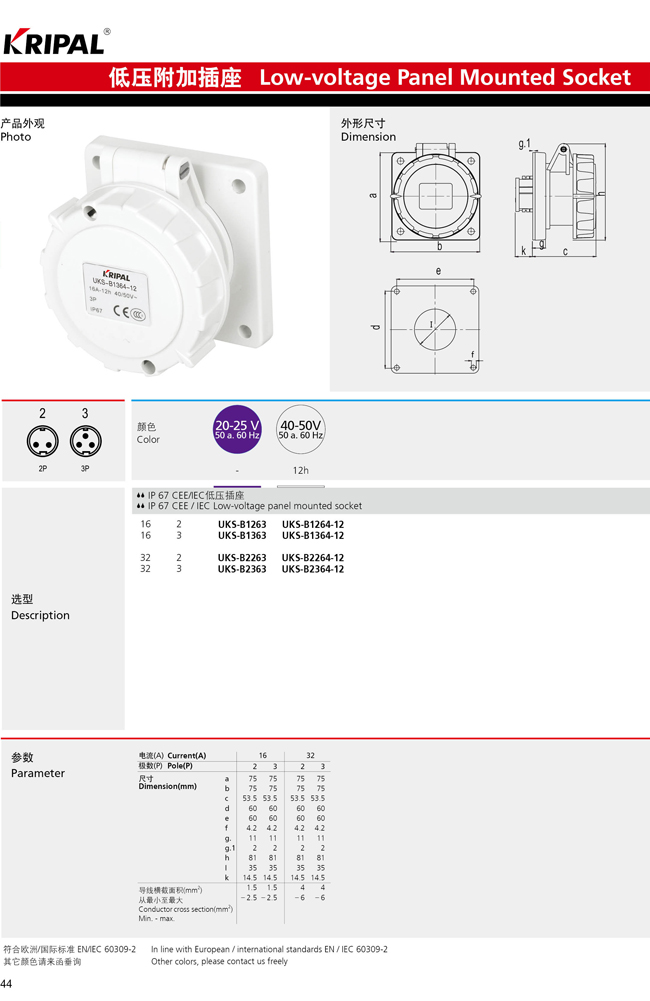

IP67 Low-voltage Industrial Power panel mounted Socket 2P, 2P+E ,
20V-25V,40V-50V, 16A,32A 5 Years Warranty
When a KRIPA L Industrial Plug Socket leaves our factory, it has
already survived the harshest testing. In our test lab it is
exposed to cold, heat, dust and water over and over again. Only the
products that withstand these tests are worthy of the name KRIPAL.
Our products are of course certified to national and international
standards by renowned institutions.
Specifications:
Rated current | 16A, 32A |
No. of poles | 2P, 2P+E |
Voltage | 20V-25V, 40-50V |
Protection degree | IP44 |
Power type | single phase |
Conductor cross-sectional area (mm2) | 1.5-4(16A), 4-6(32A) |
Material | NYLON PA6, PC, copper |
Warranty | 5years |
Tests:
CTI/PTI Test for Reefer Container Plug Socket:
When we were designing the product, we not only need to considering
the metal part, but also for the plasic part. CTI/PTI is a very
improtant test for testing the plastic. We only chose the raw
material which can pass the CTI/PTI test to keep our product have
high insulativity and safety.
Sand Dust Test for Reefer Container Plug Socket:
The operational environment is the first problem we considered when
we design the product. We need to make sure that our product can be
used over the world. So we need to evaluate the flexible condition
of environment for store, deliver, and use in dry-sands or abound
with lots of dusts.
The sand dust test adopted the manual simulation of sand & dust
conditions. So we can ensure that whether they had long-term usage
in al kinds of harsh natural environments
Rainfall Test for Interlock Switch Socket:
As we know, whatever the product, product can inordinately
influence with all kinds of liquids, whatever they in operative or
storage. It has varying effects on their raw materials and features
and even can damage the structures when they are permeated.
Rainfall test can exam the product outside case’s stabilities and
reliabilities of against the liquid.
Applications:
Protective extra-low voltage is a preventive measure for use under
extreme conditions, the rated voltage (AC) is limited by max. 50V.
Special working conditions (conductive environment e.g. in or on
boilers, pipelines, containers, metal frames or limited freedom of
motion) require the use of extra-low voltage plugs and sockets.
We can provide full range of industrial plug socket:
| Protection | IP44/IP67 |
| Current | 16A, 32A, 63A, 125A, 250A, 420A |
| Pins | 2P+E, 3P+E, 3P+N+E |
| Voltage | 20-25V; 40-50V; 110V-130V; 220-250V; 380-415V; 247V-690V |
| PLUG & SOCKET | Low voltage plug socket <50V |
| Industrial plug, industrial socket |
| Wall mounted socket, wall mounted plug |
| Panel mounted socket, panel mounted plug |
| Interlocked switched socket |
| BOX | Industrial portable socket box |
| Industrial plastic socket box |
| Power maintenance box (stainless) |
| Power maintenance box (plastic) |
| Industrial lighting box (plastic) |
| Industrial lighting box (metal) |
| Distribution box for exhibition box |
| T. V / Film power distribution box |
| Distribution box with power and compress air outlet |
| Accessories | Cap for 16A, 32A, 63A, 125A plug |
