    Angled Panel Mounted Industrial Power Socket switch 110V 16A IP44 3 Pin For Marine

    Ask Lasest Price
    Brand Name : KRIPAL
    Model Number : UKS-B1341-6
    Certification : CE
    Price : negotiable
    Payment Terms : T/T, L/C
    Supply Ability : 50000 pcs per month
    Delivery Time : 20 days and depends on ordering quantity
    • Product Details
    • Company Profile

    Angled Panel Mounted Industrial Power Socket switch 110V 16A IP44 3 Pin For Marine

    Angled Panel Mounted Industrial Power Socket switch 110V 16A IP44 3 Pin For Marine


    Industrial Panel Mounted Sockets are supplied with a spring return cover which will latch with a mating plug for secure connection ensuring optimum safety at all times.

    IP44 / IP67 Range is ideal for use in factories and Power Station’s, TV and film studios, football stadiums, railways including both underground and overground, aviation, quarries, and marine / offshore.


    Technical Data:

    Protection: IP44
    Current: 16A
    Pins: 2P+E
    voltage: 110V
    Flange size: 73.5MM*64MM
    Type: 20 degree inward slopping


    Perfect performance
    All Plugs and Sockets in our range comply with high standards of quality meeting different required tasks. Some have advanced features while others have a straight forward functionality.
    Perfect for demanding customers.

    Perfect productivity
    The result is that you can rely on all our Plugs and Sockets to help you maintain a high up-time in your operations. No unscheduled or unwanted interruptions, allowing you a high degree of flexibility.

    Perfect safety
    Safety is also very important. By choosing KRIPAL industrial plug socket you minimize the risk of short circuits. You also ensure maximum personal safety for anyone nearby or around your equipment.


    Specifications:

    Product

    Industrial panel mounted socket

    Rated current

    16A,32A,63A,125A

    No. of poles

    2P+E, 3P+E 3P+N+E

    Voltage

    220V-250V; 380V-4150V

    Protection degree

    IP67

    Power type

    Single Phase, Three Phase

    Conductor cross-sectional area (mm2)

    1.5-4(16A), 2.5-10(32A),6-25(125A)

    Material

    NYLON PA6, PC, copper

    Color

    RAL5017 (Blue); RAL3000 (Red); RAL7000 (Cyan); RAL9018 (White).




    Angled Panel Mounted Industrial Power Socket switch 110V 16A IP44 3 Pin For Marine

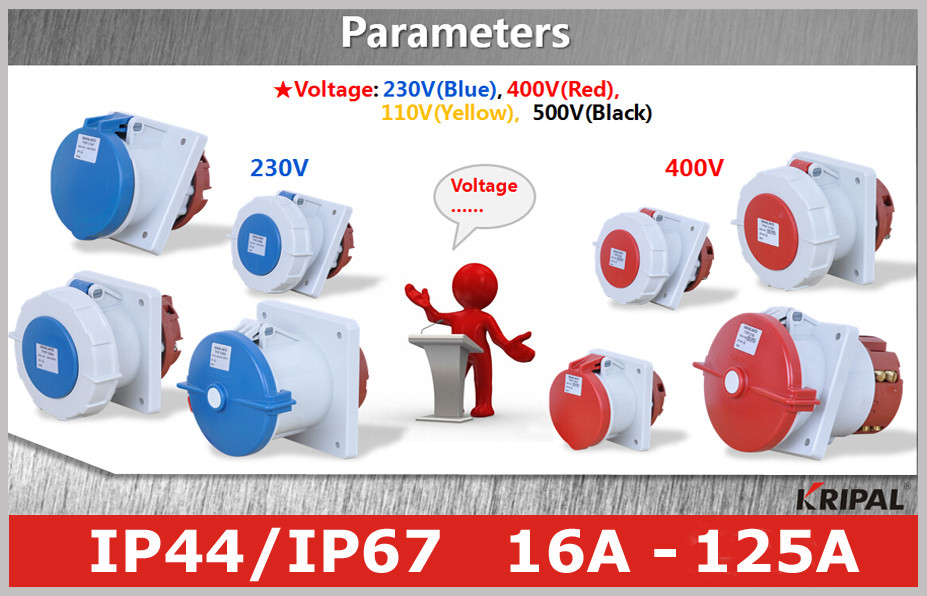

    We can provide full range of industrial plug socket:
    ProtectionIP44/IP67
    Current16A, 32A, 63A, 125A, 250A, 420A
    Pins2P+E, 3P+E, 3P+N+E
    Voltage20-25V; 40-50V; 110V-130V; 220-250V; 380-415V; 400V-690V
    PLUG & SOCKETLow voltage plug socket <50V
    Industrial plug, industrial socket
    Wall mounted socket, wall mounted plug
    Panel mounted socket, panel mounted plug
    Interlocked switched socket
    BOXIndustrial portable socket box
    Industrial plastic socket box
    Power maintenance box (stainless)
    Power maintenance box (plastic)
    Industrial lighting box (plastic)
    Industrial lighting box (metal)
    Distribution box for exhibition box
    T. V / Film power distribution box
    Distribution box with power and compress air outlet
    AccessoriesCap for 16A, 32A, 63A, 125A plug



    WHY CHOOSE KRIPAL ELECTRIC?

    Long history: We founded in 1987, more than 25 years specialized in electric system.
    Certification: We have passed ISO9001:2000, ROHS, CE, CB, Semko, TUV, SAA, UL, KEMA...
    Quality Control: we make quality control for each item separately and have serious quality control system to make our brand go further.
    Fast Service: your inquiries / comments / feedbacks will be replied within 48 hours
