Angled inward tilt 20° or 15° IP67 panel mounted Industrial Receptacles /Sockets 16A,32A,63A,125A 2P+E, 3P+E 3P+N+E

Description:

As per the relative standars and real needs of users,UKS series plug socket are developed with the features of high ingress protection,safety & reliability,amazing structure,easy wiring ,long life time and others.The main products are plug,connector,panel mounted plug socket,wall mounted plug socket,interlocked switch socket,low-voltage series,high-current series and refrigerated container series.For the better safety performance, the improvement are performed as follows:a.The inproved design of easy operation; b.Inner gasket protected by external cable grip; c.High heat-resistant materials of electric contact carriers; d. Ingress protection:IP44/IP67. On the basis of these,our products are wildly used in oil,chemical industry,melallurgy,power plants,coal mines,machinery,textile,ports,docks and other industries.

UKS-Bseries IP67 are our Panel Mounted Socket,meet German industrial standard:DIN VDE 0623,European/International standard:EN/IEC60309-2.All external screws are made of stainless steel.

63A-6h 380/415V 3P+E IP67 INWARD TILT 20°​

125A-6h 200/346V-240/415V 3P+N+E IP67 INWARD TILT 15°​

*Pls indicate the color when place order, also your specification and quantity.

Specifications:

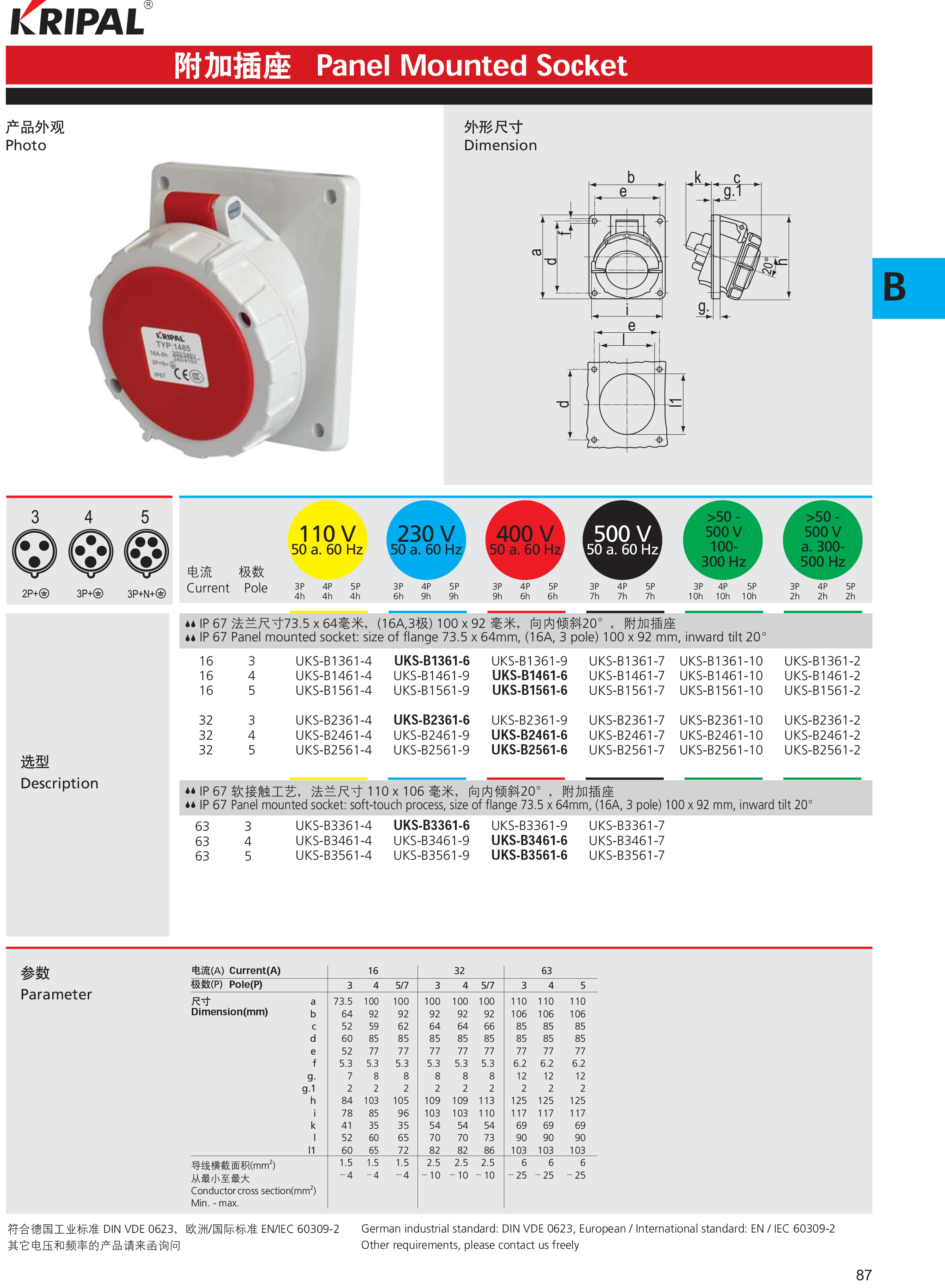

16A/32A/63A ANGLED INWARD TILT 20°​ CATALOGUE:

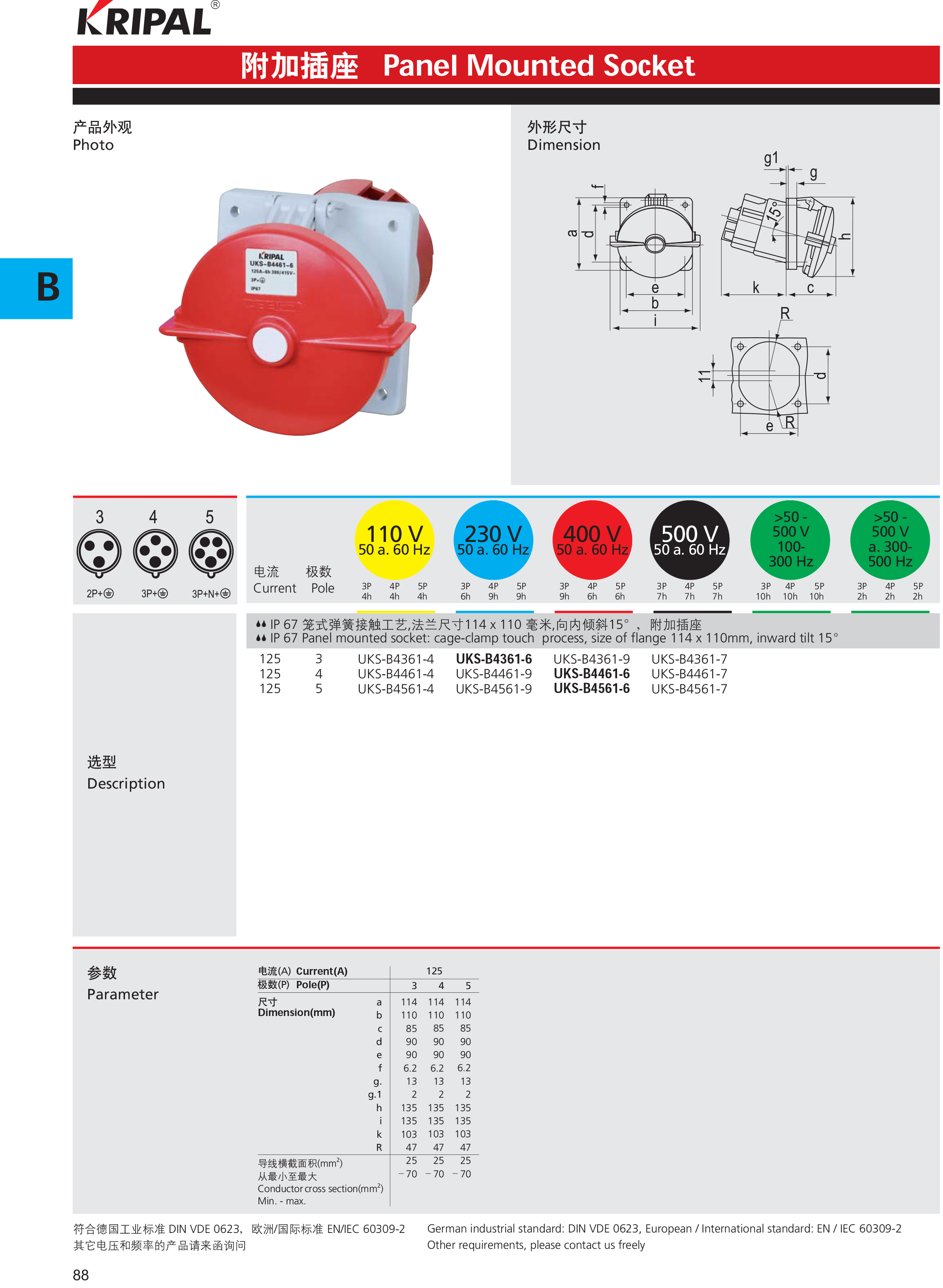

125A ANGLED INWARD TILT 15°​ CATALOGUE

*Pls indicate the color when place order, also your specification and quantity.

Zhejiang Kripal Electric Co.,Ltd is one of the national new high-tech enterprises integrated of researching, producing and selling water-proof electric, low-voltage electric and new energy electric products.

Established in 1992, Kripal now is gradually becoming the influential electric manufacturer in China after many years well development.

With a great brand effect , Kripal has the completed sales and service network with its products been exported to all over the world like Europe,Australia, American,Africa, Oceania, Southeast of Asia, and district of HongKong, Macaw and Taiwan. Kripal is awarded the title of “Famous Export Brand”.

Kripal now has the factory area 12000 m2 and workers more than 500, including over 10 senior engineers, 30 professional technicists and 30 senior executives. Products pass the certification of CE, CB, UL, VDE, TUV, KEMA, SAA, SEMKO, RoHS, and China CCC as well as quality management system such as ISO9001.

Cooperated with domestic and foreign R&D institutions, Kripal successively developed more than 100 independent intellectual properties; some of them were successfully awarded the national patent for invention and utility models as its well performance. Kripal now has been selected as provincial technical research and development center and patent demonstration enterprise by government.

Kripal always adheres to the enterprise principle of “Scientific management, Independent Innovation, Coordinating Collaboration and Cultural Brand”, keep faith of “moral first”, and fulfill the core value of “double-win cooperation with customers, creating profit for company owners, getting rich together with workers, building harmony for society” and fight for the mission of “make the dream of world famous electrical brand come true”.

Workers: 650 (including workers in Taizhou factory)

Engineers: more than 30

QA/QC: more than 20

Certificate: CQC, CB, CE,VDE,UL, TUV, Semko, KEMA, SAA, ISO9001

The land space of the company: amounts to 25000m2

What we do: products’ design, mold building, production of parts (injection & punching), assembling,
                      products’ inspection, testing and etc

KRIPAL adheres to the belief - "scientific management, independent innovation, coordinating collaboration, and cultural brand" and the enterprise principle - "we are advancing every day".
