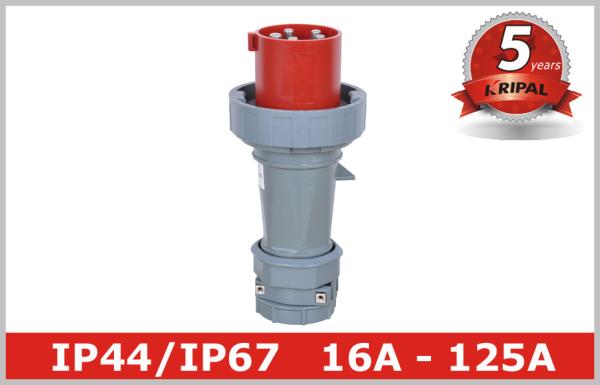

IP67 125A 5 Pin IEC CEE Industrial Male Socket Plug with Cable
Gland
Description:
In Europe, the most common range of heavy industrial plugs are made
to IEC 60309 (formerly IEC 309) and various standards based on it
(including BS 4343 and BS EN 60309-2). These are often referred to
in the UK as CEE industrial, CEE form or simply CEE plugs.
Specifications:
Product | Industrial Plug |
Rated Ampere | 16A, 32A, 63A, 125A |
No. of poles | 2P+E, 3P+E 3P+N+E |
Voltage | 220V-250V; 380V-4150V |
Protection degree | IP67, IP67 |
Power type | Single Phase, Three Phase |
Conductor cross-sectional area (mm2) | 1.5-4(16A), 2.5-10(32A),6-25(125A) |
Material | NYLON PA6, PC, copper |
Color | RAL5017 (Blue); RAL3000 (Red); RAL7000 (Cyan); RAL9018 (White). |
Classification:
Industrial Plugs are available in P+N+E (unbalanced single phase
with neutral), 2P+E (balanced single phase), 3P+E (3 phase without
neutral), and 3P+N+E (three phase with neutral).
Current ratings available are 16A, 32A, 63A, 125A, 250A, 420A
Voltage and other characteristics are represented by a color code
(in three-phase plugs the stated voltage is the phase-phase
voltage, not the phase-neutral voltage). The different voltages
have the earth pin of a larger diameter than the others, and
located in different places depending on the voltage rating, making
it impossible to mate.
Features:
1.PC plugs, sockets and couplings are constructed for extreme
operating conditions.
They are of easy installation, long life and high reliability. They
are widely used since many years ago in the
machine industry, crane industry, construction industry, trains and
cars.
2. The material has extremely good insulation ability and it is
unbreakable, wearable long-time durable up to
+120°C, resistant against oil, gasoline and salt water, almost
non-aging, proof and splash-proof.
3.All units not only fit with the same system but also are fully
compatible with units Of the same system of other
manufacturers, through groove and tongue, joint for same polarity,
We can provide full range of industrial plug socket:
| Protection | IP44/IP67 |
| Current | 16A, 32A, 63A, 125A, 250A, 420A |
| Pins | 2P+E, 3P+E, 3P+N+E |
| Voltage | 20-25V; 40-50V; 110V-130V; 220-250V; 380-415V; 247V-690V |
| PLUG & SOCKET | Low voltage plug socket <50V |
| Industrial plug, industrial socket |
| Wall mounted socket, wall mounted plug |
| Panel mounted socket, panel mounted plug |
| Interlocked switched socket |
| BOX | Industrial portable socket box |
| Industrial plastic socket box |
| Power maintenance box (stainless) |
| Power maintenance box (plastic) |
| Industrial lighting box (plastic) |
| Industrial lighting box (metal) |
| Distribution box for exhibition box |
| T. V / Film power distribution box |
| Distribution box with power and compress air outlet |
| Accessories | Cap for 16A, 32A, 63A, 125A plug |
Declaration:
When a KRIPA L product leaves our factory, it has already survived
the harshest testing. In our test lab it is exposed to cold, heat,
dust and water over and over again. Only the products that
withstand these tests are worthy of the name KRIPAL. Our products
are of course certified to national and international standards by
renowned institutions.
