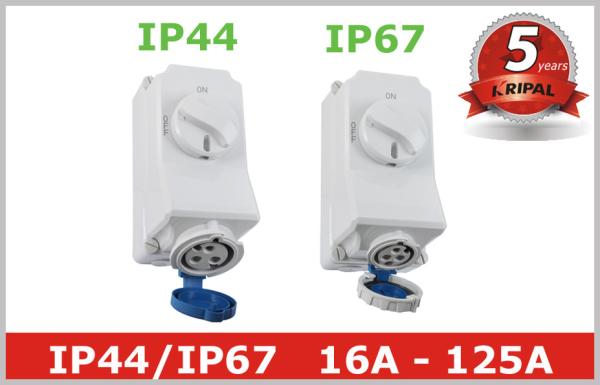

230V 400V Waterproof Interlocked Switch Sockets for Industrial Plug
KRIPAL has the UTILITY MODEL PATENT for the mechanical interlock device inside.
After insertion and switching on, the plug is interlocked in the
ON-position. After switching off and withdrawing, the switch is
locked in the OFF-position.
Description:
1.PC Interlocked Switch Sockets are constructed for extreme
operating conditions.
They are of easy installation, long life and high reliability. They
are widely used since many years ago in the machine industry, crane
industry, construction industry, trains and cars.
2.The cases and inlets are made of grade plastic nylon 66.
The material has extremely good insulation ability and it is
unbreakable, wearable long-time durable up to +120°C, resistant
against oil, gasoline and salt water, almost non-aging, proof and
splash-proof.
3.All units not only fit with the same system but also are fully
compatible with units Of the same system of other manufacturers,
through groove and tongue, joint for same polarity,
Specifications:
Product | Mechanical Interlocked Switch Socket |
Rated Ampere | 16A, 32A, 63A, 125A |
No. of poles | 2P+E, 3P+E, 3P+N+E |
Voltage | 230V, 400V |
Protection degree | IP44, IP67 |
Power type | Single Phase, Three phase |
Conductor cross-sectional area (mm2) | 1.5-4(16A); 2.5-10(32A), 6-25(63A) |
Material | NYLON PA6, PC, copper |
Color | RAL5017 (Blue); RAL3000 (Red); RAL7000 (Cyan); RAL9018 (White). |
Construction Structure:
Mechanical interlock device inside
Articulated cover prevent dust and water
Compact design, cable entry hole from side or bottom
Quality brass one-piece, high conductivity
Semko certified UKP series switchgear mounted in box
Full range of Industrial Plug Socket as follows:
| Protection | IP44/IP67 |
| Current | 16A, 32A, 63A, 125A, 250A, 420A |
| Pins | 2P+E, 3P+E, 3P+N+E |
| Voltage | 20-25V; 40-50V; 110V-130V; 220-250V; 380-415V; 247V-690V |
| PLUG & SOCKET | Low voltage plug socket <50V |
| Industrial plug, industrial socket |
| Wall mounted socket, wall mounted plug |
| Panel mounted socket, panel mounted plug |
| Interlocked switched socket |
| BOX | Industrial portable socket box |
| Industrial plastic socket box |
| Power maintenance box (stainless) |
| Power maintenance box (plastic) |
| Industrial lighting box (plastic) |
| Industrial lighting box (metal) |
| Distribution box for exhibition box |
| T. V / Film power distribution box |
| Distribution box with power and compress air outlet |
| Accessories | Cap for 16A, 32A, 63A, 125A plug |
Service
1. Delivery time: 20 working days for bulk order and depend on
ordering quantity
2. Strong production capacity and strict quality control system;
3. Your inquiry and problems related to our products or prices will
be replied in 24 hours;
4. Well-trained and experienced staffs to answer all your inquires;
5. After-sale tracking service for all of our clients;
6. OEM & ODM are available; there is an our own mould tooling
center in KRIPAL factory.
7. Payment: usually L/C, T/T,
8. Delivery way: Courier as door to door service (like DHL, TNT),
by sea, by air (airport to airport)
