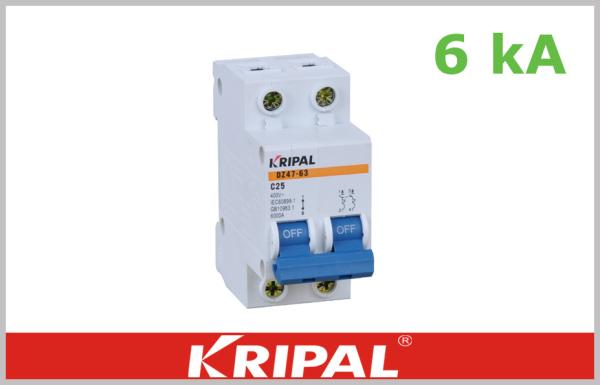

DZ47 1 Pole 2 Pole 3 Pole 4 Pole Miniature Circuit Breaker for
Household
ISO9001: 2008
6-63A with 1, 2, 3, 4Poles
3, 4.5KA Breaking Capacity
OEM, ODM are welcome
Description:
The DZ47 series mini circuit breaker is mainly used in AC50/60HZ
single-pole230V or two, three, four-poles 400Vcircuit for overload
and short-circuit protection as well as for infrequent on-and-off
switching electric equipment and lighting circuit under normal
condition. It can be used in lighting and electric motor
distribution system. It is characterized with novel structure
,light weight, reliable and excellent performance, high breaking
capacity.
It is conformity with GB10963,IEC 60898 standards.
Advantages:
The product is neoteric in structure, lig ht in weight, reliable
and excellen t in performance. Its frame and parts adopt plastics
of high fire resistant and shockproof. The product, with long life,
is mainly used in AC 50Hz/60Hz single pole 240V or two, three, four
poles up to 415V circuit for overload and short circuit protection,
as well as for unfrequently switching electric equip ment and
lighting
Specitifcation:
Standard |
| IEC898,GB10963-99,EN60898 |
Number of poles |
| 1P.2P.3P.4P |
Rated current(In) |
| 1,2,3,4,6,10,16,20,25,32,40,50,63 |
Rated voltage(Un) |
| AC240/415V |
Rated frequency |
| 50/60Hz |
Tripping curve |
| B,C,D |
Release action characteristics | Time delay | 1.13In≥1h non-trip |
1.45In<1h trip |
2.55In 1S<60S trip |
Instantaneous(Curve C) | 5In≥0.1S non-trip |
10In<0.1 trip |
Magnetic releases operate |
| B curve:between 3 and 5In |
C curve:between 5 and 10In |
D curve:between 10 and 14In |
Rated breaking capacity(Lcn) |
| 3000A,4500A,6000A |
Endurance |
| ≥2000 |
Circumstance temperature |
| -5°c+40°c |
Electrical life |
| ≥6000times |
Mechanical life |
| 2000 times |
Tropical ration |
| Treatmen 2(RH95%,at 55°c) |
Protection degree |
| IP20 |
Working environment:
Working Temperature:-20 °C ~70°C
Heat Proof: Type 2(As temperature is 55°C,relative humidity is 95%)
Protective Grade: IP 20
Environment Protection
The insulated material used conform to the EU Standard
The metal material used conform to the EU Standard
