UKB71 1P+N C Curve 6KA breaking capacity Mini Circuit Breaker 6,10,16,20,25,32,40A

Electrical Specification

Machine Parameter

Accessories

Auxiliary contact, Contact with alam indication, Generatrix line

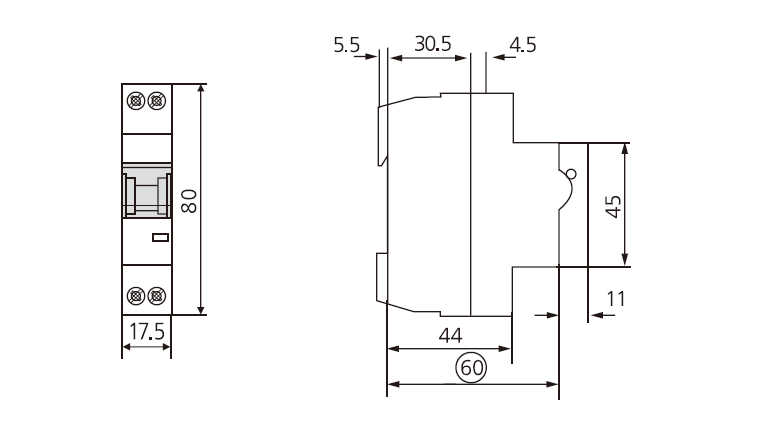

Outline and Installation Dimensions

UKB71 1P+N C Curve 6KA breaking capacity Mini Circuit Breaker 6,10,16,20,25,32,40A

Main Feature

1.High breaking capacity up to 6KA

2.Small dimension and one modular quantity with

3.Wise current scope up to 40KA

4.Performace of the functions of overload and short-circuit protection.

5.Suitable for protection to the civil lighting and socket circuit. The neutral line break for safer and more reliable.

UKB71 1P+N C Curve 6KA breaking capacity Mini Circuit Breaker 6,10,16,20,25,32,40A

Order No.

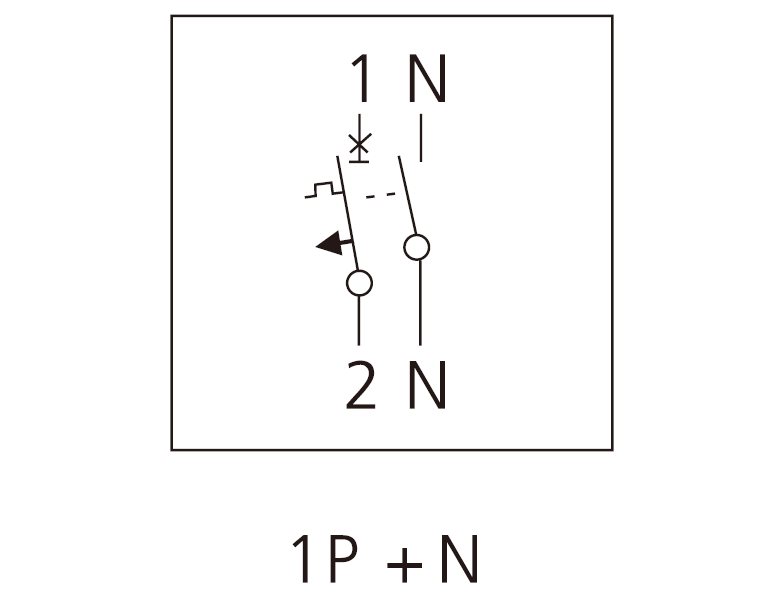

Circuit diagram

UKB71 1P+N C Curve 6KA breaking capacity Mini Circuit Breaker 6,10,16,20,25,32,40A

Tips:

1. MCB is for non-professional operation by those untrained, and no maintenance is required

2. Satisfying conditions and applications as mentioned above,MCB with “ON-OFF” indicating device is considered suitable for isolation function.

3. Particular devices such as surge protective devices,surge arrester etc are recommended to install at upstream line to MCB as precaution against potential surge voltage and current occurring at its power input side.

4. Appropriate tripping curve being chosen and properly installed, MCB trips and switches off its protected circuit in case of fault, and thus provides protection against electric shock.
