16A 4 Pole IP65 230-440V Industry Changeover Switch RoHS Standard​

    Buy cheap 16A 4 Pole IP65 230-440V Industry Changeover Switch RoHS Standard​ from wholesalers

    Buy cheap 16A 4 Pole IP65 230-440V Industry Changeover Switch RoHS Standard​ from wholesalers
    • Buy cheap 16A 4 Pole IP65 230-440V Industry Changeover Switch RoHS Standard​ from wholesalers
    • Buy cheap 16A 4 Pole IP65 230-440V Industry Changeover Switch RoHS Standard​ from wholesalers
    • Buy cheap 16A 4 Pole IP65 230-440V Industry Changeover Switch RoHS Standard​ from wholesalers
    • Buy cheap 16A 4 Pole IP65 230-440V Industry Changeover Switch RoHS Standard​ from wholesalers

    16A 4 Pole IP65 230-440V Industry Changeover Switch RoHS Standard​

    Ask Lasest Price
    Brand Name : KRIPAL
    Model Number : UKTN0-416/8213
    Certification : VDE,SEMKO,CE CERTIFICATE,CB TEST REPORT
    Price : negotiable
    Payment Terms : T/T, L/C, D/P
    Supply Ability : 100000 pcs per month
    Delivery Time : 20 days and depends on ordering quantity
    • Product Details
    • Company Profile

    16A 4 Pole IP65 230-440V Industry Changeover Switch RoHS Standard​

    16A 4P IP65 230-440V Industry Changeover Switch RoHS Standard


    Product Description


    UKT Series Universal changeover switch mainly used for AC 50Hz, rated voltage up to 440V and below, DC voltage up to 220V, rated current to 100A electrical circuit for manually infrequent making or breaking the circuit for the purposes of control and conversion ,can also controlling three-phase asynchronous motors and circuit directly as the purposes of master control and measurement. The products widely used, can be used as the circuit control switch, measuring equipment switches, motor control switches and the master control switch, and welding machine switch and so on.

    Compliance with standards:

    The changeover switch use to the main circuit switching and direct control comply with IEC/EN60947

    The changeover switch use to master control comply with IEC/EN60947

    Current(A)Rated Voltage(V)Model
    3P4P
    10230-440VUKTN0-310/8212UKTN0-410/8213
    16230-440VUKTN0-316/8212UKTN0-416/8213
    20230-440VUKTN0-320/8212UKTN0-420/8213
    20230-440VUKTN3-320/8212UKTN3-420/8213
    32230-440VUKTN3-332/8212UKTN3-432/8213
    40230-440VUKTN3-340/8212UKTN3-440/8213
    63230-440VUKTN5-363/8212UKTN5-463/8213
    80230-440VUKTN5-380/8212UKTN5-480/8213
    100230-440VUKTN5-3100/8212UKTN5-4100/8213


    Operating application

    ①Motor star-delta starting,communication or no commutation,with or without contactor interlock circuit.

    ②Motor(multi-tap winding)rev switching,speed of rotation for2,3 or 4 steps,commutation or no commutation.

    ③Power supply switching or load switching.

    ④Starting of AC motor(for single-phase power supply with capacitor)

    ⑤Control of stepping,suitable for any loads,with or without “O”position.

    ⑥Ammeter or voltmeter switching among three-phase circuits.

    ⑦Manual/auto selection.


    Maintenance switch

    Suitable for safe and reliable maintenance switch or connecting various electrical loads and equipped with the shell of the main switch at this time,you can hang a few padlocks in the breaking part,as a measure to ensure personal safety,the breaking part is clearly visible and can not be automatically reset.

    Proper installation ways

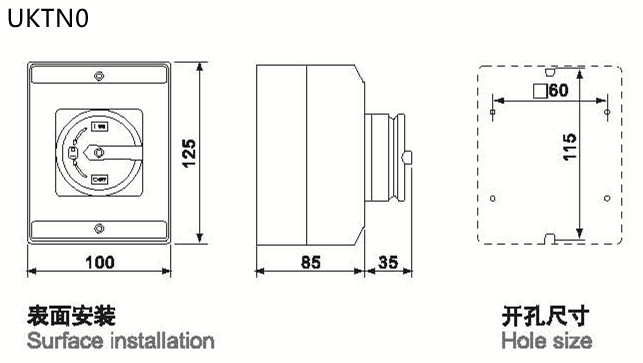

    ①Surface installation(insulation enclosure assembled)

    ②Parallel and level installation(fix in front of it)

    ③Rear installation(fix at the back of it,door linkage or cover linkage)

    ④Parallel and level installation for distribution cabinet(clamping on the guide rail)


    Product Feature


    1.Possibility of multi-combination and safety of touch

    Cam switch UKT 800 provides standard contact combinations thereof is almost unlimited number of combinations, not only that, during the switch design, safety and reliability in the first place, such as: the terminals in the housing with VDE0106, to ensure the safety of touch.


    2.Complete variety:according to the classification of power capacity, it can provide the most economical solution for different projects; the nameplate has a variety of different installation methods, which can flexibly meet the needs of specific applications.


    Application


    The principle applications of Cam Operated Rotary Switches are for making, breaking and isolation of power circuits and switching the circuits. Cam switches are suitable for AC as well as DC application used for virtually all purposes. Such as motor control, panel meter switching, control and distribution panel, etc.


    Packaging & Delivery

    Lead TimeNormally 20 days after received your fund, but mostly depends on your quantity
    Leading PortNingbo or Shanghai by sea or by air. If any other loading port please kindly advise and the extra inland transportation freight will be added accordingly.
    Trade TermEXW, FOB, CIF as customer need
    Payment TermT/T 30% as deposit,and 70% before delivery.
    PackagingNeutral carton, or according to customer requirements
    ShippingBy Air, by sea, by express

    Our service

    1.Reply inquiry in 24 hours.


    2.Please kindly inform us which items you are interested & the reasonable price will be provided you upon receipt of your new inquiry ASAP.


    3.Answer your question detailed.


    4.Solved the problem with you during using our products.


    5. Samples will be offered to you for our future cooperation.


    Our company


    Zhejiang kripal Electric Co., Ltd. is a national high-tech enterprise specializing in R & D, production and sales. Our products mainly include: small, molded case circuit breakers, AC contactors, building electrical, outdoor waterproof, control components, industrial plugs and sockets, etc.


    The company was founded in 1992, after 30 years of vigorous development, the existing plant area of more than 15000 square meters, more than 500 employees, including over 10 senior engineers, 30 professional technicists and 30 senior executives. The products have passed the certificate of UL,VDE,TUV, Kema,Semko,SAA,CE and CB test report,also ROHS international certification, and obtained the national 3C, ISO9001 quality certification.


    The company adheres to the enterprise policy of "management, independent innovation, coordination and cooperation, brand supremacy" and abides by the promise of "virtue in the world". Practice the core values of "win-win cooperation with customers, common prosperity with employees, benefit creation for the company and harmonious contribution to society", and strive for the mission of "strive to realize the dream of professional electrical world brand".


    We sincerely welcome new and old customers at home and abroad to contact us and create a better future.
