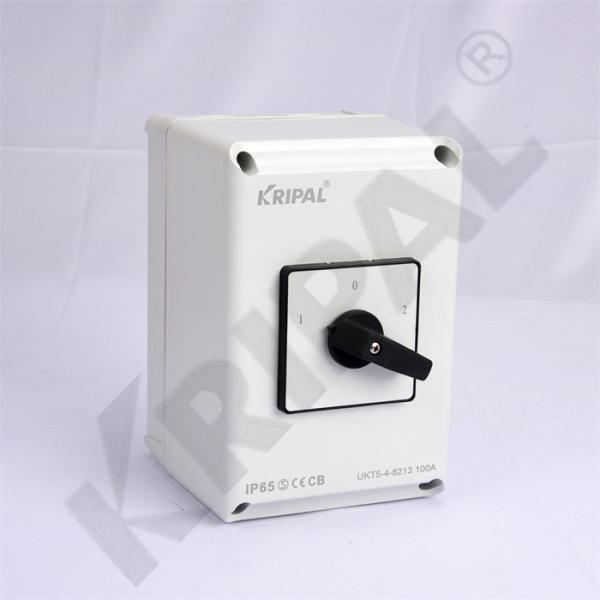

IEC standard IP65 63A 4P Electrical Selector Switch waterproof
Product Description
| Brand Name | KRIPAL |
| Model Number | UKTN0/3/5 |
| Type | Cam switch |
| Number of poles | 1P,2P,3P,4P |
| Current | 10A,16A,20A,25A,32A,40A,50A,63A,80A,100A |
| Frequency | 50/60Hz |
| Protection | IP65 |
| Material | PA,PC,Copper |
| Standard | IEC/EN 60947-3 |
| Identification | VDE,SEMKO,CE CERTIFICATE,CB TEST REPORT |
| Warranty | One and a half years |
| Current(A) | Rated Voltage(V) | Model |
| 3P | 4P |
| 10 | 230-440V | UKTN0-310/8212 | UKTN0-410/8213 |
| 16 | 230-440V | UKTN0-316/8212 | UKTN0-416/8213 |
| 20 | 230-440V | UKTN0-320/8212 | UKTN0-420/8213 |
| 20 | 230-440V | UKTN3-320/8212 | UKTN3-420/8213 |
| 32 | 230-440V | UKTN3-332/8212 | UKTN3-432/8213 |
| 40 | 230-440V | UKTN3-340/8212 | UKTN3-440/8213 |
| 63 | 230-440V | UKTN5-363/8212 | UKTN5-463/8213 |
| 80 | 230-440V | UKTN5-380/8212 | UKTN5-480/8213 |
| 100 | 230-440V | UKTN5-3100/8212 | UKTN5-4100/8213 |
Maintenance switch
Suitable for safe and reliable maintenance switch or connecting
various electrical loads and equipped with the shell of the main
switch at this time,you can hang a few padlocks in the breaking
part,as a measure to ensure personal safety,the breaking part is
clearly visible and can not be automatically reset.
Proper installation ways
①Surface installation(insulation enclosure assembled)
②Parallel and level installation(fix in front of it)
③Rear installation(fix at the back of it,door linkage or cover
linkage)
④Parallel and level installation for distribution cabinet(clamping
on the guide rail)
Product Feature
1.Possibility of multi-combination and safety of touch
UKT cam switch provides 800 standard contact combinations, the
number of which is almost unlimited. Not only that, in the switch
design process, safety and reliability are put in the first place.
For example, the shell is equipped on the terminal, and VDE0106 is
used to ensure the safety of touch.
2.Complete variety:according to the power capacity
classification,can provide the most economical solution for
different projects;There are a variety of different installation
methods of the nameplate,can be flexible to meet the needs of
specific applications.
3.Flexible switch functions
On-off switch:It can be used for illumination equipments,heating
equipments and motors reliably,in addition,they also can switch the
motor(AC-3)directly.Their high on-off ability can ensure the work
reliability at frequently making and breaking.
Control switch:For controlling the current loop,it simplifies
sending instructions from a central control position.For
example,starting a specified process from a central control room
saves time and makes the production process clear.
Operating application
①Motor star-delta starting,communication or no commutation,with or
without contactor interlock circuit.
②Control of stepping,suitable for any loads,with or without
“O”position.
③Power supply switching or load switching.
④Starting of AC motor(for single-phase power supply with capacitor)
⑤Motor(multi-tap winding)rev switching,speed of rotation for2,3 or 4
steps,commutation or no commutation.
Packaging & Delivery
| Lead Time | Normally 20 days after received your fund, but mostly depends on
your quantity |
| Leading Port | Ningbo or Shanghai by sea or by air. If any other loading port
please kindly advise and the extra inland transportation freight
will be added accordingly. |
| Trade Term | EXW, FOB, CIF as customer need |
| Payment Term | T/T 30% as deposit,and 70% before delivery. |
| Packaging | Neutral carton, or according to customer requirements |
| Shipping | By Air, by sea, by express |
FAQ
Q:Are you factory?
A:Yes ,our factory is located in Wenzhou, one hour to Yiwu and two
hours to Hangzhou by train, and one hour to Shanghai by air .Also
very near to Wenzhou international Airport and Yueqing train
station.
Q:Can you produce according to the samples?
A: Yes,we can produce by your samples or technical drawings. We can
build the molds and fixtures.
Q: Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q:Do you offer OEM service?
A:Yes,we have been providing OEM/ODM service to global
manufacturers and suppliers for many years.
Q:What′s your quality standard?
A:Our products are complied to UL,VDE,TUV,SEMKO CE,ROHS,CB,IEC……
