110V / 240V Over Voltage Digital Protection Relay 30mA 50mA 75mA 100mA

Description:

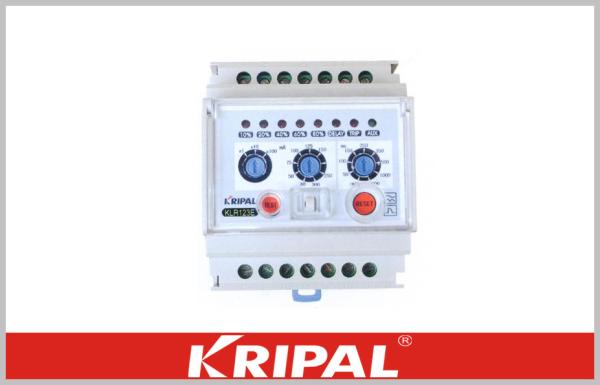

KRIPAL Earth Leakage Relay is a micro-mrocessor based electronic protection device designed to recognize current leakage to ensure the protection of electrical installations and persons against direct and indirect contacts.

KRIPAL micro-processor based digital earth leakage relay used for monitoring low-level leakage or unbalanced current, due to insulation loss on conductors or faulty equipment installed in the network. It

incorporates a real time continuous display of the earth leakage current value in true RMS ampere and allows

the isolation of the faulty network or equipment if necessary.

A ring-type current transformer is used to detect and provide the continuous measurement of the leakage

current.

Specifications:

Functions:

1. 25 selectable sensitivity settings 30mA to 30A

2. 9 selectable time delays: 0-3s

3. earth leakage level indicators

4. detection of no connection of ZCT

5. relay tripped indicator

6. trip starting indicator

7. protected againest nuisance tripping

Benefit:

Current measurement based on fundamental frequency, prevents nuisance tripping

Digital display or dial activated for ease of use

Robust casing protects the unit from external interference

Applications:

Industrial equipment protection

Suitable for low voltage distribution protection

Zhejiang Kripal Electric Co.,Ltd is one of the national new high-tech enterprises integrated of researching, producing and selling water-proof electric, low-voltage electric and new energy electric products.

Established in 1992, Kripal now is gradually becoming the influential electric manufacturer in China after many years well development.

With a great brand effect , Kripal has the completed sales and service network with its products been exported to all over the world like Europe,Australia, American,Africa, Oceania, Southeast of Asia, and district of HongKong, Macaw and Taiwan. Kripal is awarded the title of “Famous Export Brand”.

Kripal now has the factory area 12000 m2 and workers more than 500, including over 10 senior engineers, 30 professional technicists and 30 senior executives. Products pass the certification of CE, CB, UL, VDE, TUV, KEMA, SAA, SEMKO, RoHS, and China CCC as well as quality management system such as ISO9001.

Cooperated with domestic and foreign R&D institutions, Kripal successively developed more than 100 independent intellectual properties; some of them were successfully awarded the national patent for invention and utility models as its well performance. Kripal now has been selected as provincial technical research and development center and patent demonstration enterprise by government.

Kripal always adheres to the enterprise principle of “Scientific management, Independent Innovation, Coordinating Collaboration and Cultural Brand”, keep faith of “moral first”, and fulfill the core value of “double-win cooperation with customers, creating profit for company owners, getting rich together with workers, building harmony for society” and fight for the mission of “make the dream of world famous electrical brand come true”.

Workers: 650 (including workers in Taizhou factory)

Engineers: more than 30

QA/QC: more than 20

Certificate: CQC, CB, CE,VDE,UL, TUV, Semko, KEMA, SAA, ISO9001

The land space of the company: amounts to 25000m2

What we do: products’ design, mold building, production of parts (injection & punching), assembling,
                      products’ inspection, testing and etc

KRIPAL adheres to the belief - "scientific management, independent innovation, coordinating collaboration, and cultural brand" and the enterprise principle - "we are advancing every day".
