Waterproof IP65 1200V Electrical Solar DC Isolator Switch For PV
System
Product Description
Photovoltaic DC isolation switch is a dedicated DC main switch for
solar photovoltaic systems. It is mainly used between the DC
terminal of the inverter and all DC sources to ensure reliable
isolation of the inverter from all DC sources and protect important
components in the solar photovoltaic power generation system.
Reliable operation of devices and photovoltaic power generation
systems.

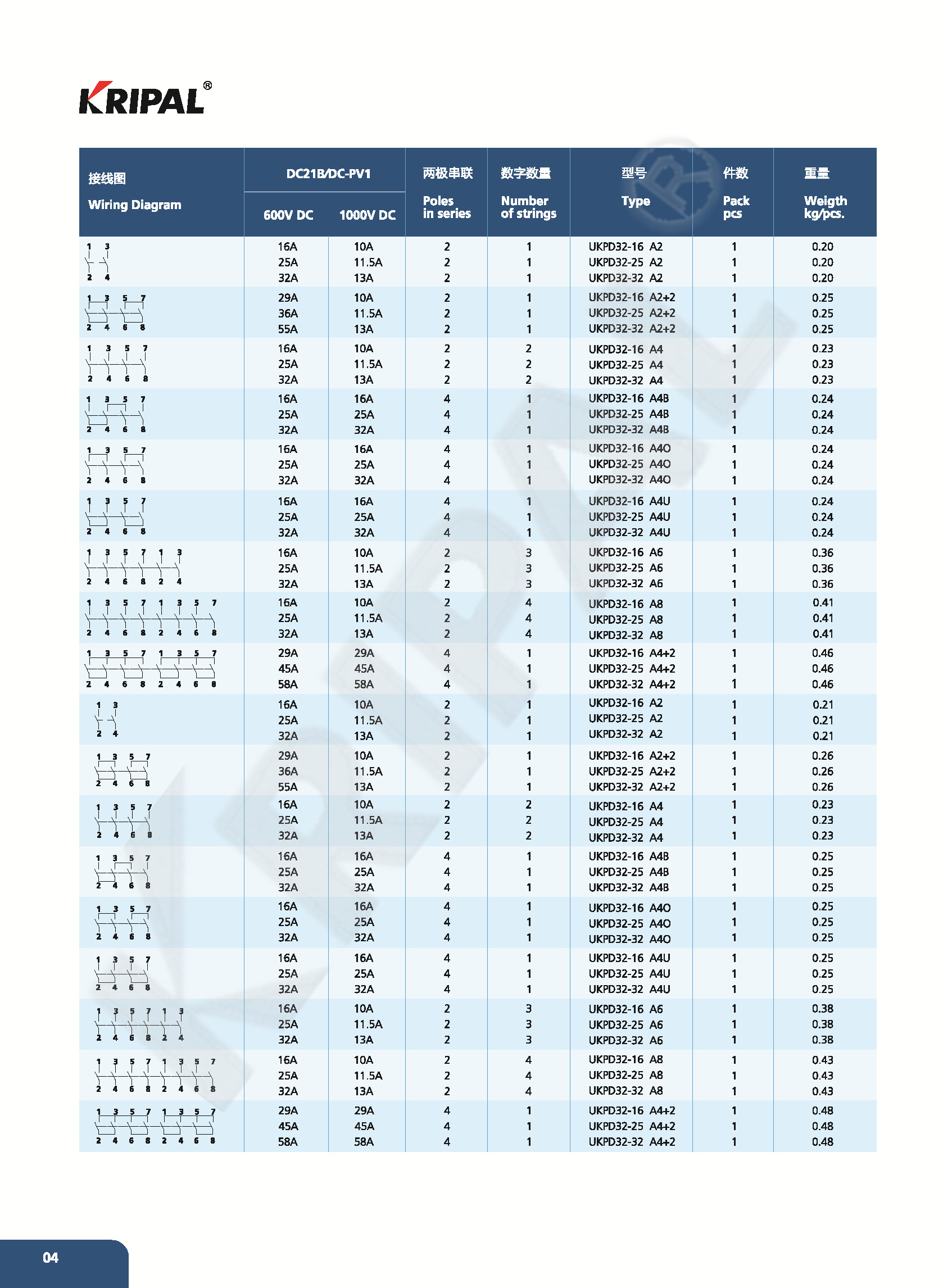

Brand Name | KRIPAL |
Model Number | UKPD32 |
Type | Photovoltaic DC Isolator Switch |
Function | Isolation,Control |
Standard | IEC60947-3,DC-21B |
Pole | 4P |
Maximum Rated Amp | 32A |
Rated Workig Voltage Ue | 1200V DC |
Rated Amp In | 16A/25A/32A |
Rated Insulated Voltage Ui | 1200V DC |
Rated Impulsed Voltage Uimp | 8KV |
Mechanical Life | 20000 |
Electrical Life | 500 |
Cap Spec | M4 |
Scerw Torque Nm | 2.5 |
Cross Wire mm² | 4-16 |
Protection Level | IP65 |
The Environment Temperature | -25℃~+85℃ |

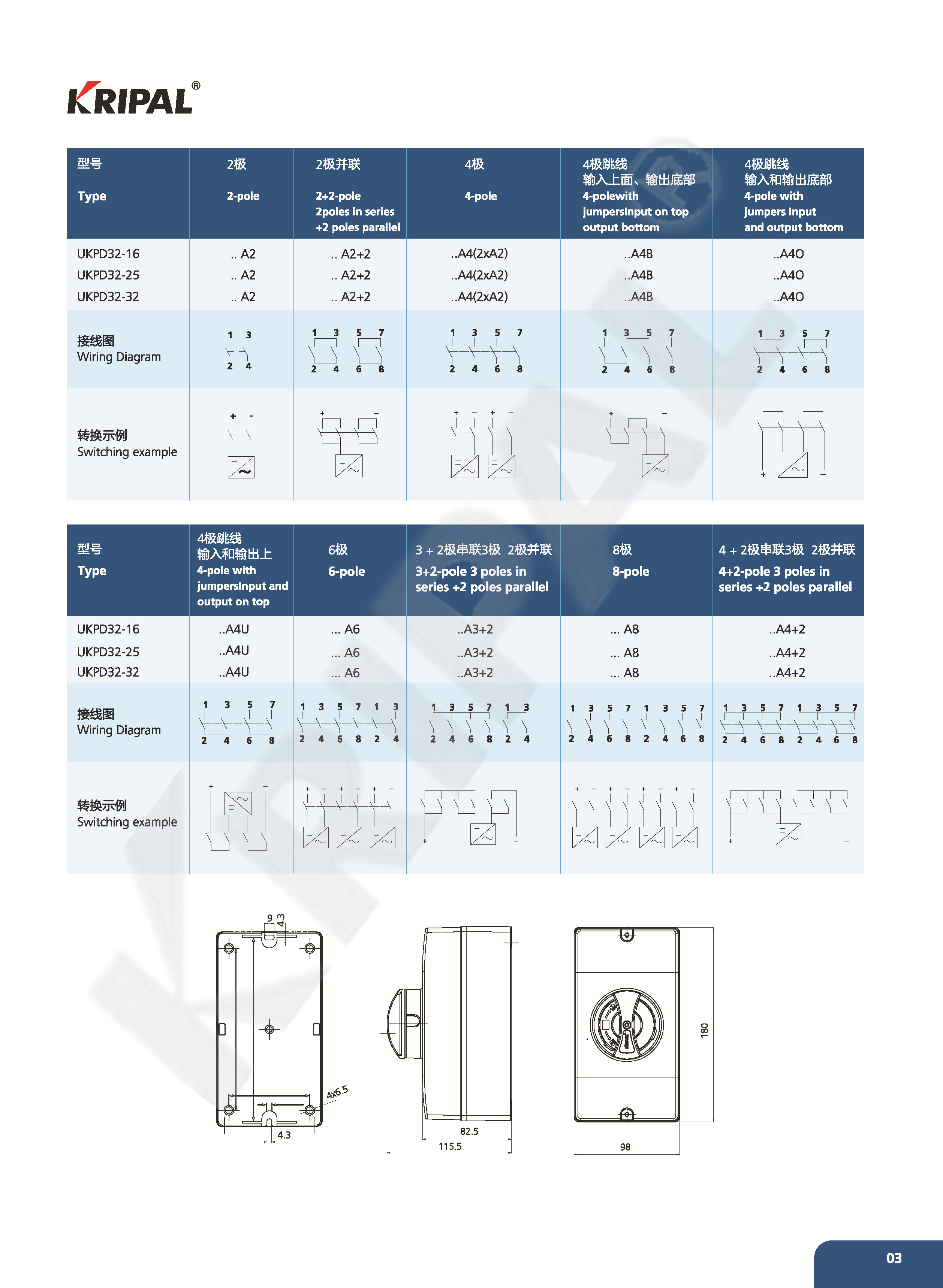

Proper installation ways
①Mounted via 4 holes
②Mounted via 1 holes
③Rear installation
④Combined switch
⑤Surface Installed
Product Feature
1. Fast breaking speed, short arcing time,Large contact gap;
2. Use the rotating arc structure to extinguish the arc,the effect
is good, and it is separated by the movable copper seat,the pieces
are spaced apart, without arcs;
3. By changing the structure of the moving and static contacts
advance, so that the contact mode is changed from the original,the
point or line contact is changed to surface contact,enhanced
electrical conductivity;
4. The modular design is adopted, which simplifies the parts, high
versatility, improved production efficiency;
5. Strong breaking ability;
6. The advantages of long life and high protection level.
Application
UKPD32 series photovoltaic DC isolation switches have a maximum
rated voltage of DC1200V and a maximum rated current level of 32A.
They are widely used in string photovoltaic inverters, controllers,
1~4 loop combiner boxes and other equipment to provide electrical
isolation and control for the DC side of photovoltaic systems.
Control protection, ensure safe operation, and can make and break
the circuit under load.
Packaging & Delivery
Lead Time | Normally 20 days after received your fund, but mostly depends on
your quantity |
Leading Port | Ningbo or Shanghai by sea or by air. If any other loading port
please kindly advise and the extra inland transportation freight
will be added accordingly. |
Trade Term | EXW, FOB, CIF as customer need |
Payment Term | T/T 30% as deposit,and 70% before delivery. |
Packaging | Neutral carton, or according to customer requirements |
Shipping | By Air, by sea, by express |
