    3P 4P 1000V 1500V Moulded Case Circuit Breaker Switch For DC Distribution Systems

    Ask Lasest Price
    Brand Name : KRIPAL
    Model Number : UKM32
    Certification : CE,KEMA
    Price : negotiable
    Payment Terms : T/T, L/C, D/P
    Supply Ability : 50000 pcs per month
    Delivery Time : 20 days and depends on ordering quantity
    • Product Details
    • Company Profile

    3P 4P 1000V 1500V Moulded Case Circuit Breaker Switch For DC Distribution Systems

    3P 4P 1000V 1500V Moulded Case Circuit Breaker Switch For DC Distribution Systems


    Product Description

    UKM32 series photovoltaic special DC molded case circuit breaker is suitable for DC grid circuit with rated voltage up to DC1200V and rated current of 250A. DC circuit breaker has overload long delay protection, short circuit instantaneous protection function , used to distribute electric energy and protect circuit and the power supply equipment is protected from the danger of overload, short circuit, etc.

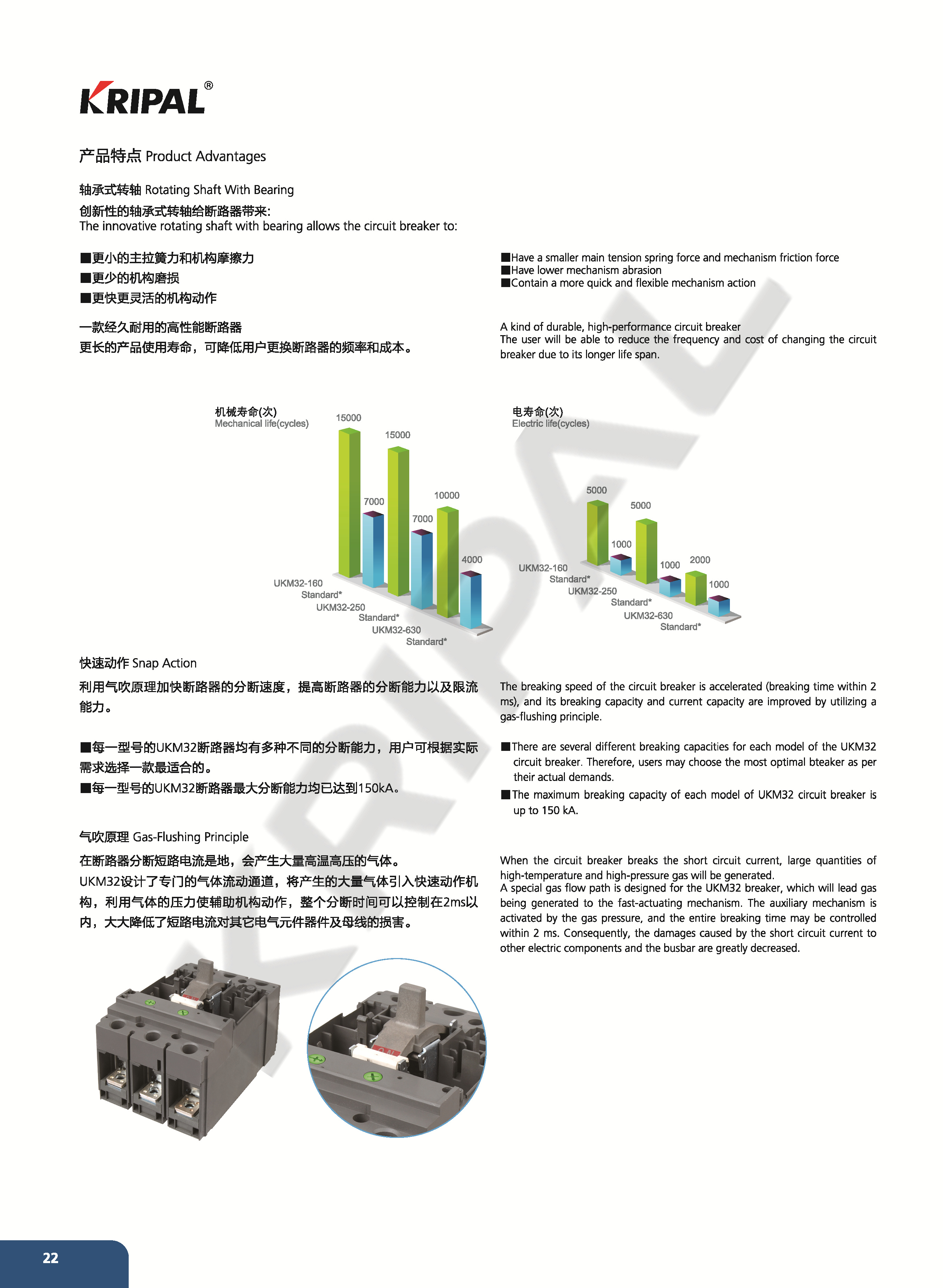

    The operating mechanism of the DC circuit breaker has the functions of quick closing and fast reading segmentation, compact structure, small size and convenient use.


    TypeUKM32-160UKM32-250UKM32-630UKM32-1250
    Frame size[AF]1602506301250
    Rated curent,ln[A]16,20,25,32,40,50 63,80,100,125,16040,50,63,80 100,125,160,200,250300,400,500,630800,1000,1250
    No.of poles2*,3,42*,3,42*,3,43
    Rated operational voltage,UeAC [V]690690690690
    DC [V]500500500500
    Rated impulse withstand volatge,Uimp[kV]8888
    Rated insulationvoltage,Ui750750750750
    Rated ultimate short-circuit breaking capacity,lcu[V]NHLNHLNHLNH
    AC 50/60Hz 220/240V[kA]851002001001202001001202008585
    380/415V[kA]5085150508515065851505070
    440/460V[kA]5070130507013065851305065
    480/500V[kA]3050654265854265854050
    660/690V[kA]58101015201020353042
    DC 250V[kA]426510050851005085100
    DC(2poles in series) 500V[kA]4265100508510050851002020
    Rated short-circuit making capacity lcm
    AC 50/60Hz 220/240V[kA]1872204402202644402202644406363
    380/415V[kA]10518733010518733014318733037.552.5
    440/460V[kA]10515428610515428614318728637.548.5
    480/500V[kA]6310514388143187881431873037.5
    660/690V[kA]8141717304017407422.531.5
    Use categoryAAAA
    Implementation of standardsIEC60947-2IEC60947-2IEC60947-2IEC60947-2
    Mechanical Life (Number of operations)25000250002000010000
