Industrial Three Phase 16A 32A IP44 IEC Panel Mount Socket Waterproof

    Buy cheap Industrial Three Phase 16A 32A IP44 IEC Panel Mount Socket Waterproof from wholesalers

    Buy cheap Industrial Three Phase 16A 32A IP44 IEC Panel Mount Socket Waterproof from wholesalers
    • Buy cheap Industrial Three Phase 16A 32A IP44 IEC Panel Mount Socket Waterproof from wholesalers
    • Buy cheap Industrial Three Phase 16A 32A IP44 IEC Panel Mount Socket Waterproof from wholesalers
    • Buy cheap Industrial Three Phase 16A 32A IP44 IEC Panel Mount Socket Waterproof from wholesalers

    Industrial Three Phase 16A 32A IP44 IEC Panel Mount Socket Waterproof

    Ask Lasest Price
    Brand Name : KRIPAL
    Model Number : UKS-D244-6
    Certification : CE
    Price : negotiable
    Payment Terms : T/T, L/C,, D/P
    Supply Ability : 50000 pcs per month
    Delivery Time : 20 days and depends on ordering quantity
    • Product Details
    • Company Profile

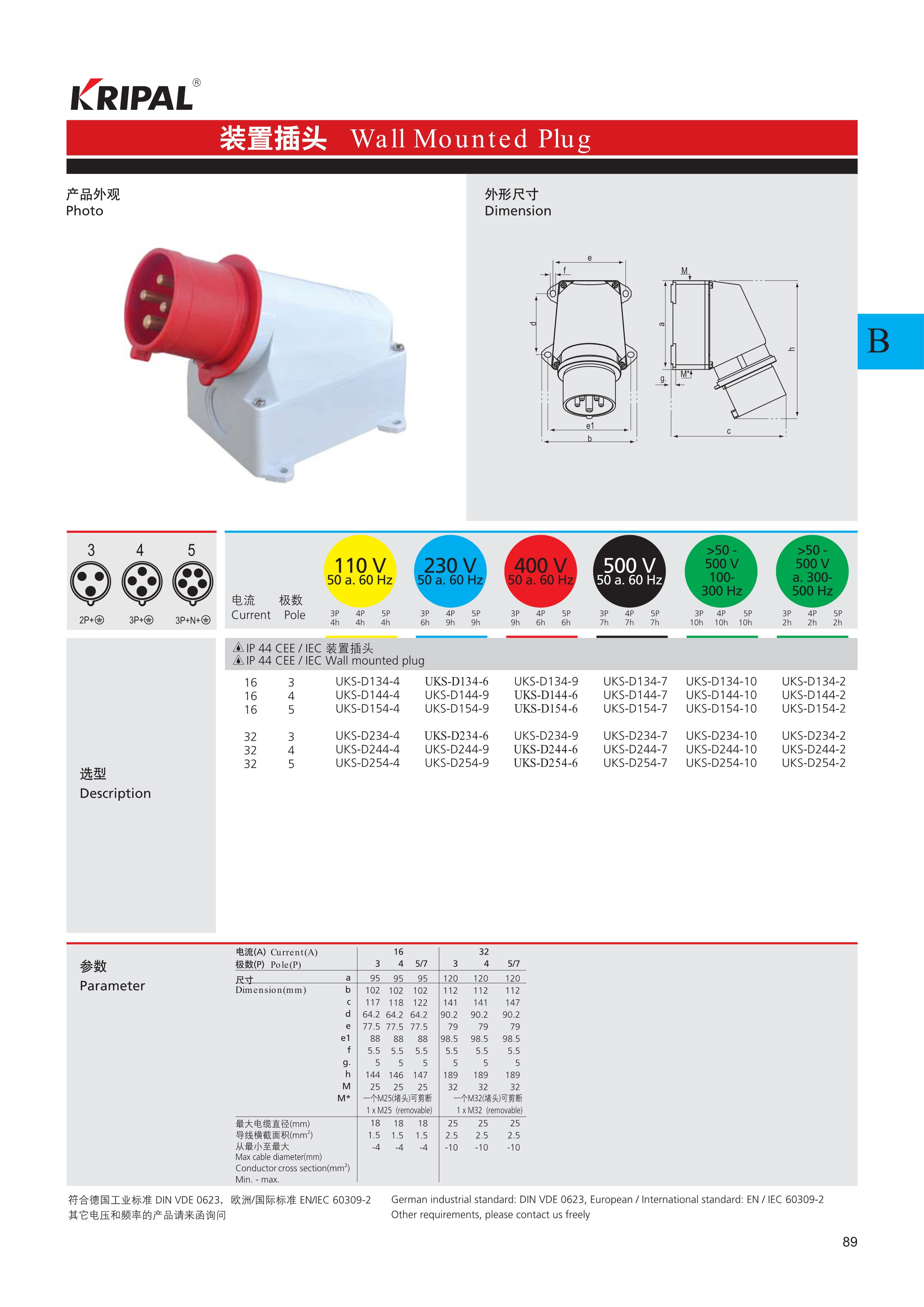

    Industrial Three Phase 16A 32A IP44 IEC Panel Mount Socket Waterproof

    Industrial Three Phase 16A 32A IP44 IEC Panel Mount Socket Waterproof


    CurrentPositionVoltageColorPolesModel
    16A4h110-130VYellow2P+EUKS-D134-4
    6h220-250VBlue2P+EUKS-D134-6
    9h380-415VRed2P+EUKS-D134-9
    4h110-130VYellow3P+EUKS-D144-4
    9h220-250VBlue3P+EUKS-D144-9
    6h380-415VRed3P+EUKS-D144-6
    4h110-130VYellow3P+N+EUKS-D154-4
    9h220-250VBlue3P+N+EUKS-D154-9
    6h380-415VRed3P+N+EUKS-D154-6
    32A4h110-130VYellow2P+EUKS-D234-4
    6h220-250VBlue2P+EUKS-D234-6
    9h380-415VRed2P+EUKS-D234-9
    4h110-130VYellow3P+EUKS-D244-4
    9h220-250VBlue3P+EUKS-D244-9
    6h380-415VRed3P+EUKS-D244-6
    4h110-130VYellow3P+N+EUKS-D254-4
    9h220-250VBlue3P+N+EUKS-D254-9
    6h380-415VRed3P+N+EUKS-D254-6


    Specifications

    ProductIndustrial Plug
    Rated current16A,32A
    No. of poles2P+E,3P+E,3P+N+E
    Voltage110V;220V-250V; 380V-415V
    Protection degreeIP44,IP67
    Power typeSingle Phase, Three Phase
    Conductor cross-sectional area (mm2)1.5-4(16A), 2.5-10(32A)
    MaterialNYLON,PA, PC, copper
    Color110V(yellow) 220V,230V(blue)
    380V,415V,440V(red) 500V(black)

    Accessory protective cover can be added


    Advantage

    It has the advantages of waterproof, dustproof, anti-corrosion, flame retardant, high temperature resistance, anti-aging, great toughness, good impact resistance, high finish and large current soft contact


    Description

    In Europe, the most common range of heavy industrial plugs are made to IEC 60309 (formerly IEC 309) and various standards based on it (including BS 4343 and BS EN 60309-2). These are often referred to in the UK as CEE industrial, CEE form or simply CEE plugs.


    Product Applications

    Applied to Power distribution equipment.
    Applied to power systerm.
    Applied to Construction site.
    Applied to Port and pier.
    Applied to Machinery industry.
    Applied to Large modern buildings.
    Applied to Large public space.
    Applied to Transportation equipment.


    Certification


    We can provide full range of industrial plug socket:

    ProtectionIP44/IP67
    Current16A, 32A, 63A, 125A, 250A, 420A
    Pins2P+E, 3P+E, 3P+N+E
    Voltage20-25V; 40-50V; 110V-130V; 220-250V; 380-415V; 247V-690V
    Plug & SocketLow voltage plug socket <50V
    Industrial plug, industrial socket
    Wall mounted socket, wall mounted plug
    Panel mounted socket, panel mounted plug
    Interlocked switched socket
    BoxIndustrial portable socket box
    Industrial plastic socket box
    Power maintenance box (stainless)
    Power maintenance box (plastic)
    Industrial lighting box (plastic)
    Industrial lighting box (metal)
    Distribution box for exhibition box
    T. V / Film power distribution box
    Distribution box with power and compress air outlet
    AccessoriesCap for 16A, 32A, 63A, 125A plug

    Service

    1. Strong production capacity and strict quality control system;

    2. Your inquiry and problems related to our products or prices will be replied in 24 hours;

    3. Well-trained and experienced staffs to answer all your inquires;

    4. After-sale tracking service for all of our clients;

    5. OEM & ODM are available; there is an our own mould tooling center in KRIPAL factory.

    6. Delivery way: Courier as door to door service (like DHL, TNT), by sea, by air (airport to airport)


    Our company


    Zhejiang kripal Electric Co., Ltd. was founded in 1992, and now has two production bases, Yueqing in Wenzhou and Xianju in Taizhou. The company has more than 500 employees, including over 10 senior engineers, 30 professional technicists and 30 senior executives, covering an area of more than 15000 square meters. The company has passed ISO9001 quality system certification, and serves customers with high-quality service, innovative electrical solutions and competitive prices. Therefore, the products are exported to Europe, Australia, America, Africa, Oceania, Southeast Asia, Hong Kong, Macao and Taiwan, with good brand effect in the local area, and won the title of Zhejiang export famous brand enterprise. Our mission is to strive to realize the dream of professional electrical world brand, and strive to improve our company's share in the global market. Welcome to cooperate with kripal to create a better tomorrow.
