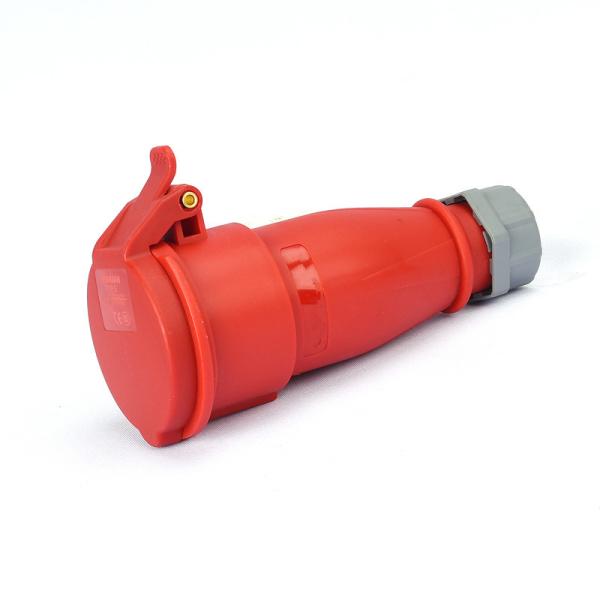

    380V IP44 4Pin Industrial Socket Connection IEC Standard Safety

    Ask Lasest Price
    Brand Name : KRIPAL
    Model Number : UKS-C144-6
    Certification : CE
    Price : negotiable
    Payment Terms : T/T, L/C, D/P
    Supply Ability : 50000 pcs per month
    Delivery Time : 20 days and depends on ordering quantity
    • Product Details
    • Company Profile

    380V IP44 4Pin Industrial Socket Connection IEC Standard Safety

    380V IP44 4Pin Industrial Socket Connection IEC Standard Safety


    CurrentPositionVoltageColorPolesModel
    16A4h110-130VYellow2P+EUKS-C134-4
    6h220-250VBlue2P+EUKS-C134-6
    9h380-415VRed2P+EUKS-C134-9
    4h110-130VYellow3P+EUKS-C144-4
    9h220-250VBlue3P+EUKS-C144-9
    6h380-415VRed3P+EUKS-C144-6
    4h110-130VYellow3P+N+EUKS-C154-4
    9h220-250VBlue3P+N+EUKS-C154-9
    6h380-415VRed3P+N+EUKS-C154-6
    32A4h110-130VYellow2P+EUKS-C234-4
    6h220-250VBlue2P+EUKS-C234-6
    9h380-415VRed2P+EUKS-C234-9
    4h110-130VYellow3P+EUKS-C244-4
    9h220-250VBlue3P+EUKS-C244-9
    6h380-415VRed3P+EUKS-C244-6
    4h110-130VYellow3P+N+EUKS-C254-4
    9h220-250VBlue3P+N+EUKS-C254-9
    6h380-415VRed3P+N+EUKS-C254-6

    Product

    Industrial Connector

    Rated current

    16A, 32A

    No. of poles

    2P+E,3P+E,3P+N+E

    Voltage

    110-130V;220V-250V;380V-415V

    Protection degree

    IP44

    Power type

    Single Phase, Three Phase

    Conductor cross-sectional area (mm2)

    1.5-4(16A), 2.5-10(32A)

    Material

    Nylon,PA,PC,Copper

    Color

    110V(yellow) 220V,230V(blue)
    380V,415V,440V(red) 500V(black)


    Feature


    1. High protection level:IP44 andIP67


    2. Rated voltage is indicated by the color of the shell, which is clear at a glanc


    3.Has a strong water dust protection performance, can deal with the test of the vast majority of harsh environment.


    4.General use over all of the world, its specifications and varieties, can meet a variety of occasions and uses.


    Product Applications

    1. Power generation equipment

    2. Film and TV lighting and audio equipment and engineering

    3. injection molding machine

    4. Mechanical equipment: food machinery, mobile welding machine, etc.

    5. Packaging machinery (heat-shrinkable packaging machine)

    6. Construction projects: new factory (workshop renovation),subway,etc.

    7. Distribution equipment (distribution cabinet, distribution box, etc.)

    8. Lighting fixtu

    9. Electronic instrument

    10. Air conditioning units

    11. Energy generation (solar, wind and nuclear)

    12. Part manufacturing

    13. Mobile communication: special vehicles

    14. Refrigeration equipment: Refrigerated containers (Port Authority), etc.

    15. Measuring apparatus

    16. Machine tool industry

    17. Transportation equipment


    Certification


    We can provide full range of industrial plug socket:


    ProtectionIP44/IP67
    Current16A, 32A, 63A, 125A, 250A, 420A
    Pins2P+E, 3P+E, 3P+N+E
    Voltage20-25V; 40-50V; 110V-130V; 220-250V; 380-415V; 247V-690V
    Plug & SocketLow voltage plug socket <50V
    Industrial plug, industrial socket
    Wall mounted socket, wall mounted plug
    Panel mounted socket, panel mounted plug
    Interlocked switched socket
    BoxIndustrial portable socket box
    Industrial plastic socket box
    Power maintenance box (stainless)
    Power maintenance box (plastic)
    Industrial lighting box (plastic)
    Industrial lighting box (metal)
    Distribution box for exhibition box
    T. V / Film power distribution box
    Distribution box with power and compress air outlet
    AccessoriesCap for 16A, 32A, 63A, 125A plug


    Service


    1. Delivery time: 20 working days for bulk order and depend on ordering quantity

    2. Strong production capacity and strict quality control system;

    3. Your inquiry and problems related to our products or prices will be replied in 24 hours;

    4. Well-trained and experienced staffs to answer all your inquires;

    5. After-sale tracking service for all of our clients;

    6. OEM & ODM are available; there is an our own mould tooling center in KRIPAL factory.


    Our company

    Zhejiang kripal Electric Co., Ltd. is a national high-tech enterprise specializing in R & D, production and sales. Our products mainly include: small, molded case circuit breakers, AC contactors, building electrical, outdoor waterproof, control components, industrial plugs and sockets, etc.


    The company was founded in 1992, after 30 years of vigorous development, the existing plant area of more than 15000 square meters, more than 500 employees, including over 10 senior engineers, 30 professional technicists and 30 senior executives. The products have passed the certificate of UL,VDE,TUV, Kema,Semko,SAA,CE and CB test report,also ROHS international certification, and obtained the national 3C, ISO9001 quality certification.


    The company adheres to the enterprise policy of "management, independent innovation, coordination and cooperation, brand supremacy" and abides by the promise of "virtue in the world". Practice the core values of "win-win cooperation with customers, common prosperity with employees, benefit creation for the company and harmonious contribution to society", and strive for the mission of "strive to realize the dream of professional electrical world brand".


    We sincerely welcome new and old customers at home and abroad to contact us and create a better future.
