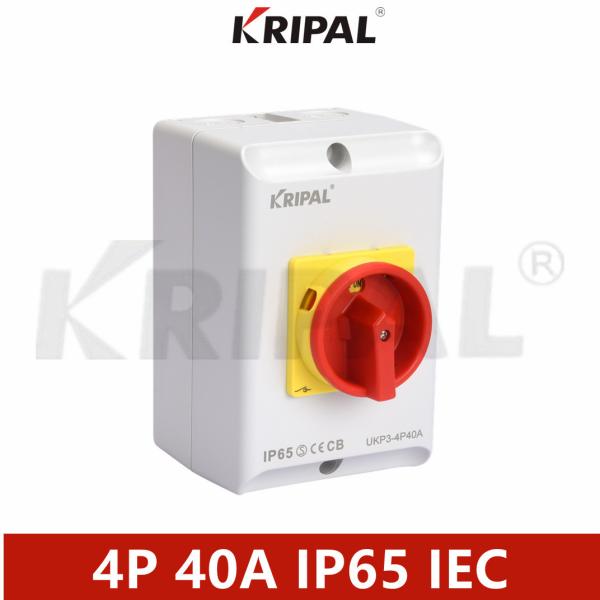

AC waterproof isolator switch UKP four pole 40 Amp IP65 IEC
Product Description
UKP is a rotary load isolating switch used for line connection,
disconnection and line maintenance or load maintenance for
isolation. It includes a movable contact support part, a
transmission mechanism, a static contact, and a shell,Wiring seat,
base.Because it adopts a spiral transmission mechanism to realize
the structure of closing and breaking of moving and static
contacts, and at the same time adopts a scroll spring as an energy
storage spring, it can ensure fast closing and breaking speeds. The
product has good stability and high on-off capability. In addition,
the product not only allows the operator to clearly see the opening
and closing conditions of the moving and static contacts, but also
prohibits the misoperation of the closing of unrelated personnel.
It has the advantages of reasonable, ingenious design, safe and
reliable, convenient and practical, and excellent performance.
| Brand Name | KRIPAL |
| Model Number | UKPN0/1/3/5 |
| Type | Load Isolation Switch |
| Number of poles | 3P,4P |
| Current | 10A,16A,20A,25A,32A,40A,50A,63A,80A,100A,125A,150A |
| Frequency | 50/60Hz |
| Protection | IP65 |
| Material | PC,Copper |
| Standard | IEC/EN 60947-3, AS/NZS 3947 |
| Identification | VDE,SEMKO,CE CERTIFICATE,CB TEST REPORT |
| Warranty | One and a half years |
| Advantage | Dustproof,Waterproof,Corrosion protection,Prevent the loss caused by long-term illumination,Safety,Low-energy,Easy setup |
Reference Model
| Current(A) | Rated Voltage(V) | Model |
| 3P | 4P |
| 10 | 230-440V | UKPN0-310 | UKPN0-410 |
| 16 | 230-440V | UKPN0-316 | UKPN0-416 |
| 20 | 230-440V | UKPN0-320 | UKPN0-420 |
| 20 | 230-440V | UKPN1-320 | UKPN1-420 |
| 25 | 230-440V | UKPN1-325 | UKPN1-425 |
| 32 | 230-440V | UKPN1-332 | UKPN1-432 |
| 32 | 230-440V | UKPN3-332 | UKPN3-432 |
| 40 | 230-440V | UKPN3-340 | UKPN3-440 |
| 50 | 230-440V | UKPN3-350 | UKPN3-450 |
| 63 | 230-440V | UKPN3-363 | UKPN3-463 |
| 63 | 230-440V | UKPN5-363 | UKPN5-463 |
| 80 | 230-440V | UKPN5-380 | UKPN5-480 |
| 100 | 230-440V | UKPN5-3100 | UKPN5-4100 |
| 125 | 230-440V | UKPN5-3125 | UKPN5-4125 |
| 150 | 230-440V | UKPN5-3150 | UKPN5-4150 |
Maintenance switch
The Ioad isolation switch UKP can be used as an overhaul switch or
a master switch with a shell to connect various electrical loads.
The opening position can be equipped with multiple padlocks. To
ensure personal safety, the opening position should be clear and
cannot be automatically reset. The safety switch complies with IEC
60947-3 and GB14048.3 standards.
Product Feature
1.Safe and Reliable: the terminals equipped with protective cover
conform to VDE0106,to ensure the safety of finger touch
2.Flexible application:800 standard contact combinations are
available,with an almost unlimited number of switch combinations.
3.Complete variety:according to the power capacity
classification,can provide the most economical solution for
different projects;there are a variety of different installation
methods of the nameplate,can be flexible to meet the needs of
specific applications.
4.It has a variety of uses in industrial machinery and
equipment.For example,when used as maintenance switch and insurance
switch,3 padlocks can be installed in O part to ensure the personal
safety of users.
5.It can be used reliably in lighting equipment,heating equipment
and motors reliably,in addition,they also can switch the
motor(AC-3) derectly,its high on-off ability can ensure the work
reliability at frequently making and breaking.
6.Beautiful appearance,novel,simple,small size and function are the
ideal choice among similar products.
Application
Waterproof isolator switches offer ideal features for their use as:
ON-OFF Switches, Emergency-Off Switches, Maintenance Switches,
Safety Switches, Distribution Switches, and Motor switches.
