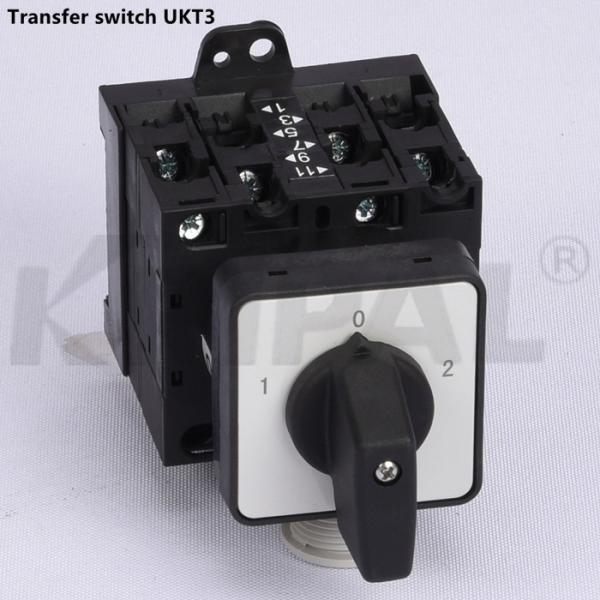

IP65 440V Triple Pole Load Break Waterproof Cam Transfer Switch

Product Description

UKT sereies rotary switch mainly applies to 440V and below,AC 50Hz or 240V and below DC circuits. For breaking and closing,change-over of circuits under unfrequenly manual operation.

UKT series have 8 current ratings:10A,16A,20A,32A, 40A,63A,80A,100 A.

For breaking and closing,change-over of circuits under unfrequenly manual operation.

They were designed for multiple functions,wide variety of applications.

And the typical application are:

①Motor star-delta starting,communication or no commutation,with or without contactor interlock circuit.

②Motor(multi-tap winding)rev switching,speed of rotation for2,3 or 4 steps,commutation or no commutation.

③Power supply switching or load switching.

④Starting of AC motor(for single-phase power supply with capacitor)

⑤Control of stepping,suitable for any loads,with or without “O”position.

⑥Ammeter or voltmeter switching among three-phase circuits.

⑦Manual/auto selection.

Product Feature

1.Complete variety:according to the power capacity classification,can provide the most economical solution for different projects;There are a variety of different installation methods of the nameplate,can be flexible to meet the needs of specific applications.

2.Flexible switch functions

On-off switch:It can be used reliably in lighting equipment heating equipment and motor,also can be directly switched motor(AC-3).Their high on-off ability can ensure the work reliability at frequently making and breaking.

3.Possibility of multi-combination and safety of touch

Cam switch UKT provide 800 standard contacts combinations,their combination number is almost limitless, not only that,in the switch design process,safety and reliability in the first place,such as:equipped with the cover of the terminal in the line with VDE0106,to ensure the safety of the touch.

4.Control switches: circuit for controlling the current, which simplifies the command transmitted from the central control position. For example, starting a specified process from the central control room can save time and make the production process clear.

Application

Packaging & Delivery

Why choose us

1. We have more than 30 years of professional experience;

2. China's famous export enterprises, whose products are exported to more than 100 countries;

3. We have a perfect sales service system to ensure every detail goes smoothly;

4. We have a perfect testing system to ensure that every product is qualified;

5. We cooperate with reliable logistics companies.

Our company

Zhejiang Kripal Electric Co.,Ltd is one of the national new high-tech enterprises integrated of researching, producing and selling water-proof electric, low-voltage electric and new energy electric products.

Established in 1992, Kripal now is gradually becoming the influential electric manufacturer in China after many years well development.

With a great brand effect , Kripal has the completed sales and service network with its products been exported to all over the world like Europe,Australia, American,Africa, Oceania, Southeast of Asia, and district of HongKong, Macaw and Taiwan. Kripal is awarded the title of “Famous Export Brand”.

Kripal now has the factory area 12000 m2 and workers more than 500, including over 10 senior engineers, 30 professional technicists and 30 senior executives. Products pass the certification of CE, CB, UL, VDE, TUV, KEMA, SAA, SEMKO, RoHS, and China CCC as well as quality management system such as ISO9001.

Cooperated with domestic and foreign R&D institutions, Kripal successively developed more than 100 independent intellectual properties; some of them were successfully awarded the national patent for invention and utility models as its well performance. Kripal now has been selected as provincial technical research and development center and patent demonstration enterprise by government.

Kripal always adheres to the enterprise principle of “Scientific management, Independent Innovation, Coordinating Collaboration and Cultural Brand”, keep faith of “moral first”, and fulfill the core value of “double-win cooperation with customers, creating profit for company owners, getting rich together with workers, building harmony for society” and fight for the mission of “make the dream of world famous electrical brand come true”.

Workers: 650 (including workers in Taizhou factory)

Engineers: more than 30

QA/QC: more than 20

Certificate: CQC, CB, CE,VDE,UL, TUV, Semko, KEMA, SAA, ISO9001

The land space of the company: amounts to 25000m2

What we do: products’ design, mold building, production of parts (injection & punching), assembling,
                      products’ inspection, testing and etc

KRIPAL adheres to the belief - "scientific management, independent innovation, coordinating collaboration, and cultural brand" and the enterprise principle - "we are advancing every day".
