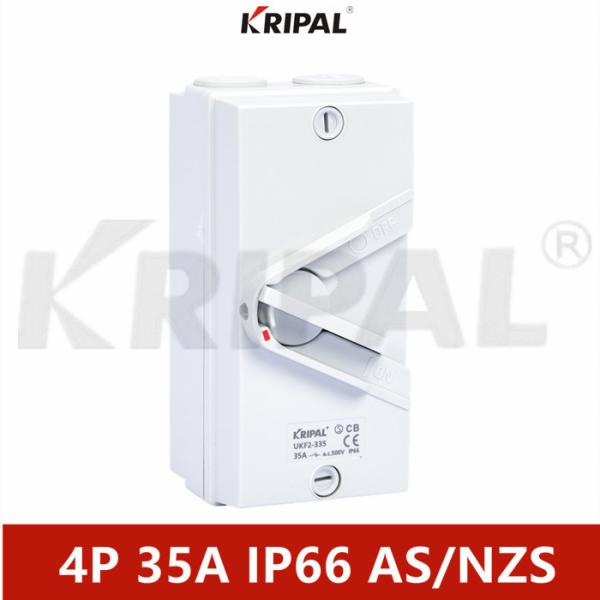

35A IP66 440V 4P Waterproof Isolating Switch Outdoor SAA
Product Description
| Brand Name | KRIPAL |
| Model Number | UKF2 |
| Type | Weatherproof Isolator switch |
| Number of poles | 1P,2P,3P,4P |
| Current | 10A,16A,20A,35A,63A |
| Frequency | 50/60Hz |
| Protection | IP66 |
| Material | PC,Copper |
| Standard | IEC/EN60947,AS/NZS 3123:2005 |
| Identification | SAA,SEMKO,CE CERTIFICATE,CB TEST REPORT |
| Color | Gray&White |
| Warranty | One and a half years |
| Current(A) | Rated Voltage(V) | Pole(P) | Type |
| 20 | 250 | 1 | UKF2-120 |
| 440 | 2 | UKF2-220 |
| 3 | UKF2-320 |
| 4 | UKF2-420 |
| 35 | 250 | 1 | UKF2-135 |
| 440 | 2 | UKF2-235 |
| 3 | UKF2-335 |
| 4 | UKF2-435 |
| 63 | 250 | 1 | UKF2-163 |
| 440 | 2 | UKF2-263 |
| 3 | UKF2-363 |
| 4 | UKF2-463 |
Product Feature
1. The base mounting device provides easier terminating and greater
wiring space.
2. Install the ground and neutral connection rod. Use double
fastening screws to effectively fix all cables on the junction box
and reliably clamp them to prevent liquid leakage
3. Higher safety, the installation switch to the metal structure is
provided with an insulation cap, the insulation cap covers the base
mounting screw, to prevent it from contacting the live cable.
4, each device is provided with threaded conduit connector and
threaded reducing pipe, used to connect 25mm or 20mm conduit and
nut; Nuts must be installed to ensure IP rating.
5. Impact-resistant base and cover plate can withstand severe
impact under almost all installation conditions. The base and cover
plate are separated by weather-resistant waterproof sealing ring.
6. For safety, provide a 7mm diameter hole for locking the lever in
the OFF position. A depth - mounted partition ensures that the
lever prevents accidental operation.
7, all products are in line with IEC60947-3 standard, the standard
color of the switch is gray.
Product Application
Products are widely used in smelting, chemicals, power electronics,
airports, railways, construction sites, mines, quarries, water
supply and drainage treatment plants, automobile manufacturing,
ports, docks, shopping malls, hotels and other places.
Packaging & Delivery
| Lead Time | Normally 20 days after received your fund, but mostly depends on
your quantity |
| Leading Port | Ningbo or Shanghai by sea or by air. If any other loading port
please kindly advise and the extra inland transportation freight
will be added accordingly. |
| Trade Term | EXW, FOB, CIF as customer need |
| Payment Term | T/T 30% as deposit,and 70% before delivery. |
| Packaging | Neutral carton, or according to customer requirements |
| Shipping | By Air, by sea, by express |
