35A IP66 Industry Single Phase Isolator Switch Outdoor Waterproof
Product Description
Isolating switch having a superior waterproof and dustproof
waterproof function, can effectively prevent the entry of dust and
oil, in case of rain or strong mist will not affect the performance
of the product; the same time, it has a corrosion resistance, UV
resistance, cold resistance high temperature, aging, etc., can
solve your security needs electricity in harsh outdoor environments
(such as rain, dust, ice, high temperatures, strong ultraviolet
radiation).Weathering disconnector has wide application, for any
outdoor application conditions.
| Brand Name | KRIPAL |
| Model | UKF1,UKF2,UKF3,UKF4 |
| Type | Standard Grounding |
| Number of poles | 1P,2P,3P,4P |
| Current | 10A,16A,20A,35A,63A |
| Frequency | 50/60Hz |
| Rated Voltage | 250V/500V |
| Protection | IP66 |
| Material | PC,Copper |
| Standard | IEC/EN60947,AS/NZS 3123:2005 |
| Identification | SAA,SEMKO,CE CERTIFICATE,CB TEST REPORT |
| Color | Gray&White |
| Warranty | One and a half years |
| Advantage | Waterproof,Dustproof,Anti-corrosion,Anti-ultraviolet,Flame
retardant ,High temperature,Anti-aging and other characteristics. |
Reference Model
| Current(A) | Rated Voltage(V) | Pole(P) | Type |
| 20 | 250 | 1 | UKF3-120 |
| 440 | 2 | UKF3-220 |
| 3 | UKF3-320 |
| 4 | UKF3-420 |
| 35 | 250 | 1 | UKF3-135 |
| 440 | 2 | UKF3-235 |
| 3 | UKF3-335 |
| 4 | UKF3-435 |
| 63 | 250 | 1 | UKF3-163 |
| 440 | 2 | UKF3-263 |
| 3 | UKF3-363 |
| 4 | UKF3-463 |
Product Feature
1.The mounting mechanism of the switch base terminal box provides a
larger and simpler wiring position.
2. The grounding and zero-connection connecting rods are installed
with double-tight screws, which can effectively fix all cables on
the junction box, and the clamping is reliable to prevent leakage.
3.The safety is higher. The switch is installed on the metal
structure with an insulating cap. The insulating cap covers the
base mounting screws to prevent contact with live cables. The
insulating cap can be reliably installed on the metal structure
switch. The WHD panel cover and the base are two The combination of
plastic screws can fully avoid leakage.
4. Each device is provided with a threaded conduit joint and
threaded reducing pipe for connection to a 25mm or 20mm conduit and
nut; Nuts must be installed to ensure IP ratings.

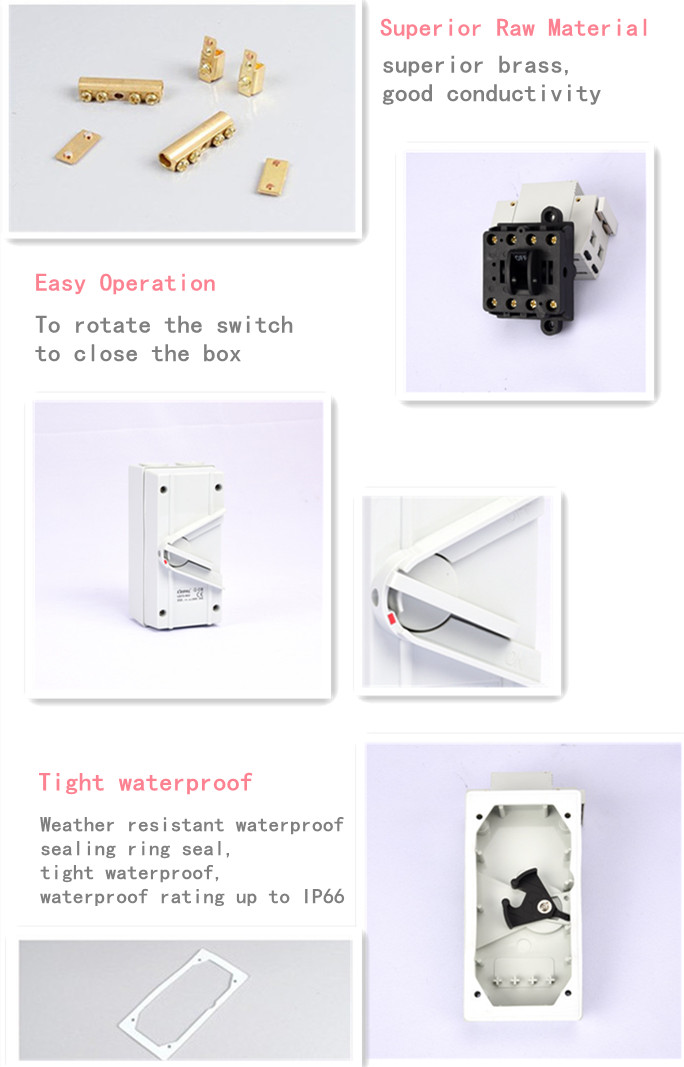

5. The shock-resistant base and cover can withstand severe shocks
under almost all installation conditions. The base and cover are
separated by a weather-resistant and waterproof sealing ring.
6. For safety, a hole with a diameter of 7mm in the OFF position is
used in a heavily machined cast baffle to padlock the control lever
during maintenance or overhaul. The deep-mounted baffle is secured
to prevent accidental switch operation of the joysticks.
7. All products comply with IEC60947-3 standard and provide safe
and reliable control of power supply in any harsh working
environment.
8. Appearance color: the standard color of the switch is gray and
white.
Packaging & Shipping
| Lead Time | Normally 20 days after received your fund, but mostly depends on
your quantity |
| Leading Port | Ningbo or Shanghai by sea or by air. If any other loading port
please kindly advise and the extra inland transportation freight
will be added accordingly. |
| Trade Term | EXW, FOB, CIF as customer need |
| Payment Term | T/T 30% as deposit,and 70% before delivery. |
| Packaging | Neutral carton, or according to customer requirements |
| Shipping | By Air, by sea, by express |
FAQ
Q:Are you factory?
A:Yes ,our factory is located in Wenzhou, one hour to Yiwu and two
hours to Hangzhou by train, and one hour to Shanghai by air .Also
very near to Wenzhou international Airport and Yueqing train
station.
Q:Can you produce according to the samples?
A: Yes,we can produce by your samples or technical drawings. We can
build the molds and fixtures.
Q:Do you offer OEM service?
A:Yes,we have been providing OEM/ODM service to global
manufacturers and suppliers for many years.
Q:What’s the standard of package?
A:Export standard package or special package according to customer.
Q: How do you make our business long-term and good relationship?
A: 1.We keep good quality and competitive price to ensure our
customers benefit;
2.We respect every customer as our friend and we sincerely do
business and make friends with them, no matter where they come
from.
Our company
Zhejiang kripal Electric Co., Ltd. was founded in 1992, and now has
two production bases, Yueqing in Wenzhou and Xianju in Taizhou. The
company has more than 500 employees, including over 10 senior
engineers, 30 professional technicists and 30 senior executives,
covering an area of more than 15000 square meters. The company has
passed ISO9001 quality system certification, and serves customers
with high-quality service, innovative electrical solutions and
competitive prices. Therefore, the products are exported to Europe,
Australia, America, Africa, Oceania, Southeast Asia, Hong Kong,
Macao and Taiwan, with good brand effect in the local area, and won
the title of Zhejiang export famous brand enterprise. Our mission
is to strive to realize the dream of professional electrical world
brand, and strive to improve our company's share in the global
market. Welcome to cooperate with kripal to create a better
tomorrow.
