IP65 4P 16A 230-440V waterproof isolator switch UKP IEC standard
Product Description
The KRIPAL rotating switch is suitable for the rated operating
current up to 100A, and its design is the same as popular circuit.
Suitable for air conditioning, water pump, ventilation equipment
and small power AC motor control. There are six current ratings:
10A, 16A, 20A, 25A, 32A, 40A, 50A, 63A, 80A, 100A, 125A, 150A. In
addition, there are two poles, three poles, four poles and five
poles. They all comply with IEC 60947-3.
| Brand Name | KRIPAL |
| Model Number | UKP0/1/3/5 |
| Type | Load Isolation Switch |
| Number of poles | 3P,4P |
| Current | 10A,16A,20A,25A,32A,40A,50A,63A,80A,100A,125A,150A |
| Frequency | 50/60Hz |
| Protection | IP65 |
| Material | PC,Copper |
| Standard | IEC/EN 60947-3, AS/NZS 3947 |
| Identification | VDE,SEMKO,CE CERTIFICATE,CB TEST REPORT |
| Warranty | One and a half years |
Reference Model
| Current(A) | Rated Voltage(V) | Model |
| 3P | 4P |
| 10 | 230-440V | UKP0-310 | UKP0-410 |
| 16 | 230-440V | UKP0-316 | UKP0-416 |
| 20 | 230-440V | UKP0-320 | UKP0-420 |
| 20 | 230-440V | UKP1-320 | UKP1-420 |
| 25 | 230-440V | UKP1-325 | UKP1-425 |
| 32 | 230-440V | UKP1-332 | UKP1-432 |
| 32 | 230-440V | UKP3-332 | UKP3-432 |
| 40 | 230-440V | UKP3-340 | UKP3-440 |
| 50 | 230-440V | UKP3-350 | UKP3-450 |
| 63 | 230-440V | UKP3-363 | UKP3-463 |
| 63 | 230-440V | UKP5-363 | UKP5-463 |
| 80 | 230-440V | UKP5-380 | UKP5-480 |
| 100 | 230-440V | UKP5-3100 | UKP5-4100 |
| 125 | 230-440V | UKP5-3125 | UKP5-4125 |
| 150 | 230-440V | UKP5-3150 | UKP5-4150 |

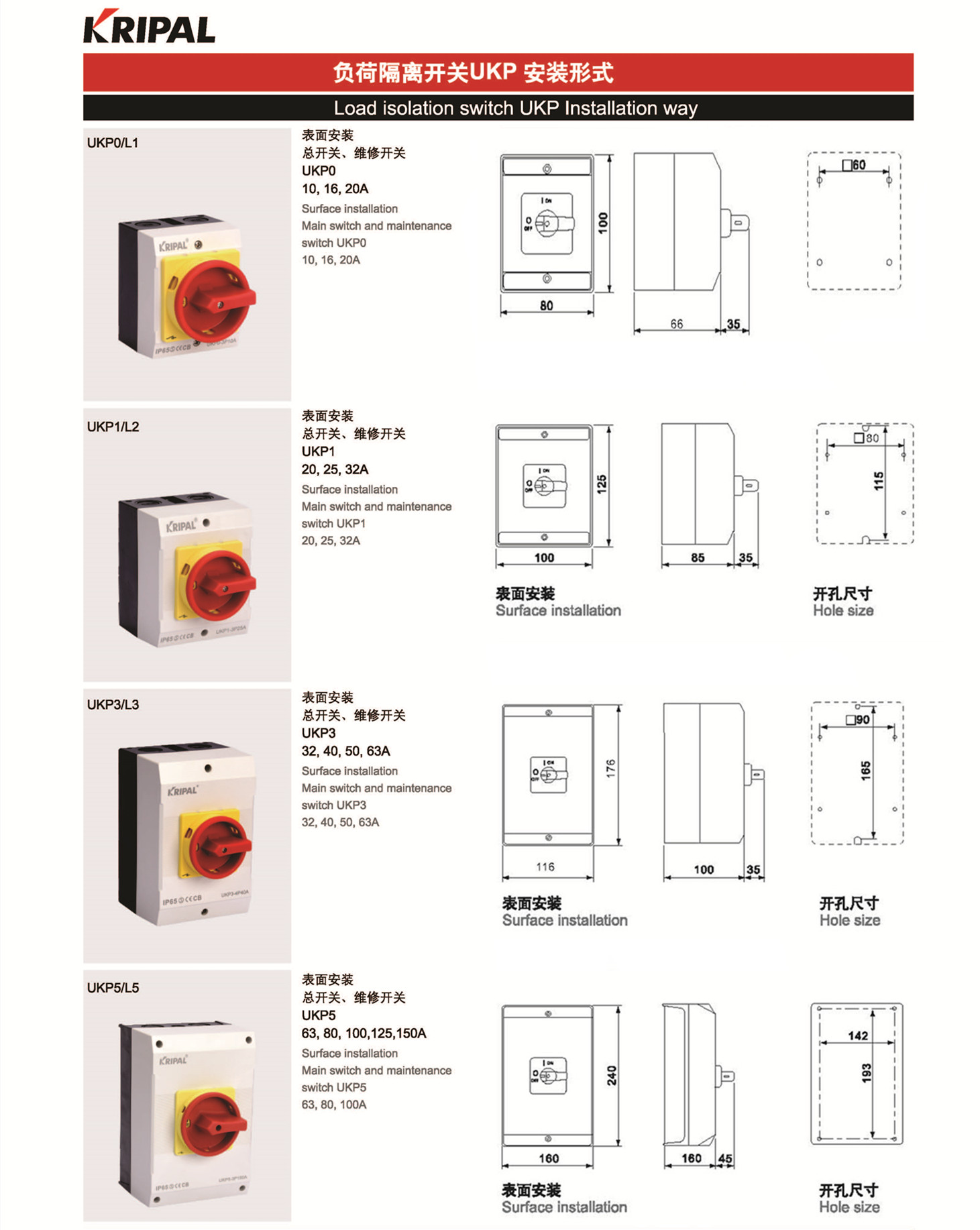

Proper installation ways
① Surface installation(insulation enclosure assembled)
② Parallel and level installation(fix in front of it)
③ Rear installation(fix at the back of it,door linkage or cover
linkage)
Product Feature
1.Safe and Reliable: the terminals equipped with protective cover
conform to VDE0106,to ensure the safety of finger touch
2.Flexible application:800 standard contact combinations are
available,with an almost unlimited number of switch combinations.
3.Complete variety:according to the power capacity
classification,can provide the most economical solution for
different projects;there are a variety of different installation
methods of the nameplate,can be flexible to meet the needs of
specific applications.
4.It has a variety of uses in industrial machinery and
equipment.For example,when used as maintenance switch and insurance
switch,3 padlocks can be installed in O part to ensure the personal
safety of users.
5.It can be used reliably in lighting equipment,heating equipment
and motors reliably,in addition,they also can switch the
motor(AC-3) derectly,its high on-off ability can ensure the work
reliability at frequently making and breaking.
6.Beautiful appearance,novel,simple,small size and function are the
ideal choice among similar products.
Packing & Delivery
| Lead Time | Normally 20 days after received your fund, but mostly depends on
your quantity |
| Leading Port | Ningbo or Shanghai by sea or by air. If any other loading port
please kindly advise and the extra inland transportation freight
will be added accordingly. |
| Trade Term | EXW, FOB, CIF as customer need |
| Payment Term | T/T 30% as deposit,and 70% before delivery. |
| Packaging | Neutral carton, or according to customer requirements |
| Shipping | By Air, by sea, by express |
