    10A 4Pole IP65 230-440V Electric Rotary Isolator Switch IEC Standard

    Ask Lasest Price
    Brand Name : KRIPAL
    Model Number : UKP0-410
    Certification : VDE,SEMKO,CE CERTIFICATE,CB TEST REPORT
    Price : negotiable
    Payment Terms : T/T, L/C, D/P
    Supply Ability : 100000 pcs per month
    Delivery Time : 20 days and depends on ordering quantity
    • Product Details
    • Company Profile

    10A 4Pole IP65 230-440V Electric Rotary Isolator Switch IEC Standard

    10A 4Pole IP65 230-440V Electric Rotary Isolator Switch


    Product Description


    Brand NameKRIPAL
    Model NumberUKP0/1/3/5
    TypeLoad Isolation Switch
    Number of poles3P,4P
    Current10A,16A,20A,25A,32A,40A,50A,63A,80A,100A,125A,150A
    Frequency50/60Hz
    ProtectionIP65
    MaterialPC,Copper
    StandardIEC/EN 60947-3, AS/NZS 3947
    IdentificationVDE,SEMKO,CE CERTIFICATE,CB TEST REPORT
    WarrantyOne and a half years


    Maintenance switch


    Load disconnecting switch UKP can be used as a maintenance switch or a main switch with housing to connect various electrical loads. Multiple padlocks can be assembled in the opening position. In order to ensure the safety of personnel, the opening position should be clear at a glance and cannot be automatically reset.

    The safety switch complies with IEC 60947-3 and GB14048.3 standards

    Proper installation ways


    ①Surface installation(insulation enclosure assembled)

    ②Parallel and level installation(fix in front of it)

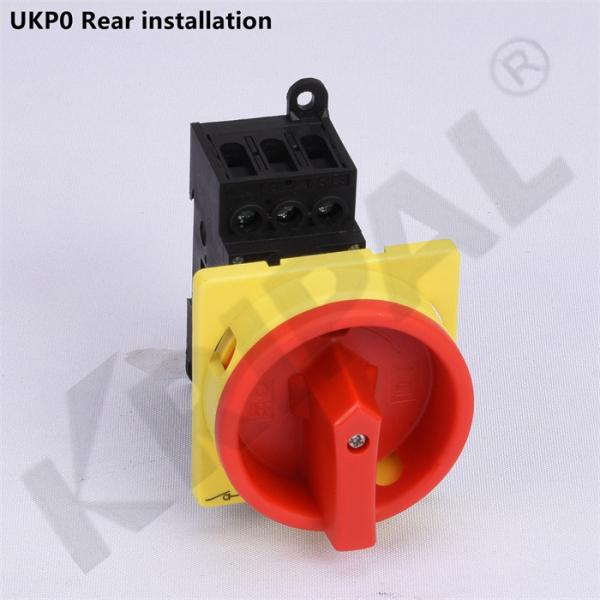

    ③Rear installation(fix at the back of it,door linkage or cover linkage)


    Reference Model


    Current(A)Rated Voltage(V)Model
    3P4P
    10230-440VUKP0-310UKP0-410
    16230-440VUKP0-316UKP0-416
    20230-440VUKP0-320UKP0-420
    20230-440VUKP1-320UKP1-420
    25230-440VUKP1-325UKP1-425
    32230-440VUKP1-332UKP1-432
    32230-440VUKP3-332UKP3-432
    40230-440VUKP3-340UKP3-440
    50230-440VUKP3-350UKP3-450
    63230-440VUKP3-363UKP3-463
    63230-440VUKP5-363UKP5-463
    80230-440VUKP5-380UKP5-480
    100230-440VUKP5-3100UKP5-4100
    125230-440VUKP5-3125UKP5-4125
    150230-440VUKP5-3150

    UKP5-4150


    Product Feature


    Safety

    The switch from the insulation disconnection contacts, Considerably more than the security requirements, in many cases, switch security level than the world existing electric block.


    Flexible installation type

    Switch suitable panel and can be used, installation, and base type can easily installed base and safely use screws or 35mm rail system installation, most strong flexibility and adaptability, additional contactor and neutral terminals may not remove switch and easily to increase theadditional contactor.


    Convenient installation

    Built-in screws prevent hand-operated sliding, pneumatic or power tools, ensuring optimum performance and speed during installation.
